Coolant lines for BMW 2 Series U06 Active Tourer 225eX (2025)

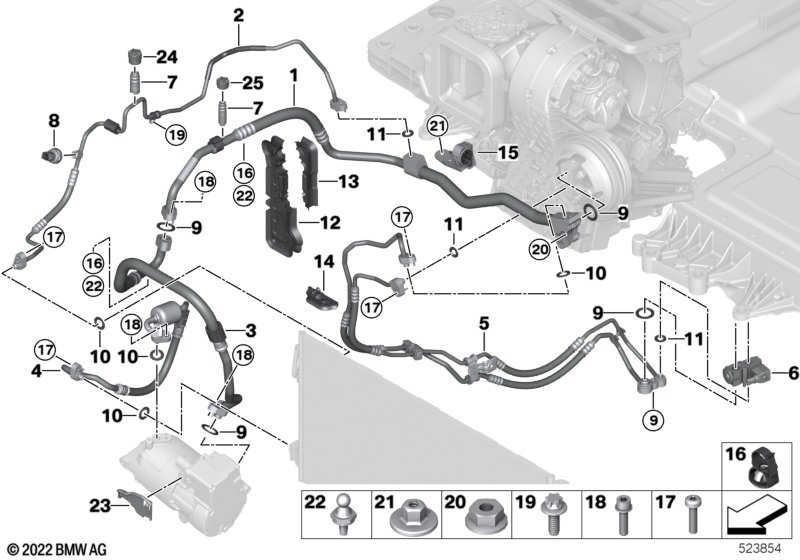

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 225eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Refrigerant R1234yf |
S8R9A=Yes |
||||||||
| 01 | Suction pipe, evaporator | R1234YF | 1 | 64505A27121 | Shop at ECS Tuning | |||||
| 02 | Pressure pipe, condenser expansion valve | R1234YF | 1 | 64505A27127 | Shop at ECS Tuning | |||||
| 03 | Suction pipe, compressor | 1 | 64535A27123 | Shop at ECS Tuning | ||||||
| 04 | Pressure hose assy compressor-condenser | 1 | 64505A27125 | Shop at ECS Tuning | ||||||
| 05 | Kältemittelleitung Hochvoltspeicher 1 | 1 | 64505A27124 | Shop at ECS Tuning | ||||||
| 06 | Electric expansion valve | 1 | 64505A0F0D0 | Shop at ECS Tuning | ||||||
| 07 | Valve | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 08 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 09 | Gasket ring | D=17MM | 4 | 64539284019 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=11MM | 4 | 64539284018 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | D=8MM | 4 | 64539284020 | Shop at ECS Tuning | |||||
| 12 | Seal, equipment module, front | 1 | 64505A1F336 | Shop at ECS Tuning | ||||||
| 13 | Seal, equipment module, front | 1 | 64505A1F335 | Shop at ECS Tuning | ||||||
| 14 | Tülle | 1 | 64535A35196 | Shop at ECS Tuning | ||||||
| 15 | Holder, intake pipe | 1 | 64509871203 | Shop at ECS Tuning | ||||||
| 16 | Pipe clip | 2 | 07149209733 | Shop at ECS Tuning | ||||||
| 17 | Countersunk screw | M6X25 | 5 | 07119909776 | Shop at ECS Tuning | |||||
| 18 | ISA screw | M8X30-U1-8.8 | 1 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 19 | ASA screw, self-threading | M6X16 | 1 | 34509804151 | Shop at ECS Tuning | |||||
| 20 | Hex nut | M6-10-ZNNIV SI | 2 | 07129907467 | Shop at ECS Tuning | |||||
| 21 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 22 | Ball pin | 2 | 64539209732 | Shop at ECS Tuning | ||||||
| 23 | Crashschutzblech | 1 | 64505A17F44 | Shop at ECS Tuning | ||||||
| 24 | Sealing cap for suction line | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| 25 | Sealing cap for pressure line | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 225eX Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 2 Series U06 Active Tourer 225eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Suction pipe, evaporator (Part #64505A27121).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 2 Series U06 Active Tourer 225eX produced during 2025. These technical specifications ensure that parts like the Suction pipe, evaporator (64505A27121) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 225eX, you can identify the Suction pipe, evaporator by locating its position on the schematic, which then links to the official BMW part number 64505A27121 for the Heater and Air Conditioning section.
