Evaporator / Expansion valve for BMW 7 Series G70 740i (2025)

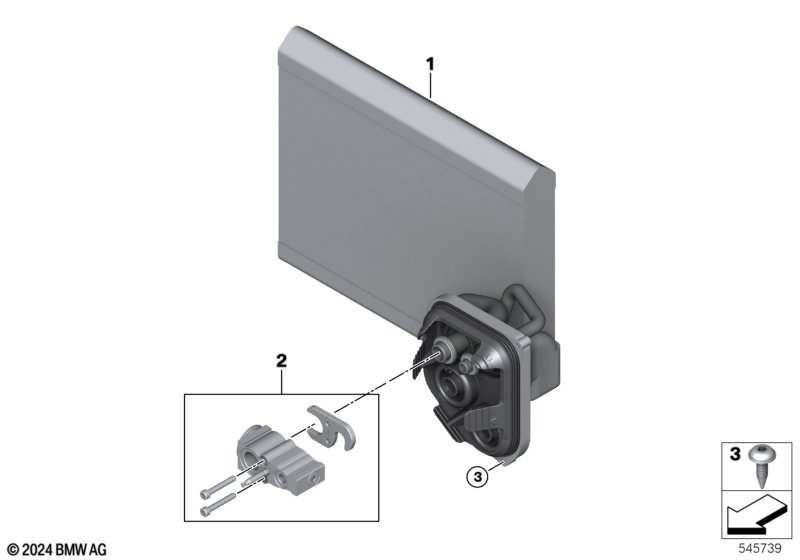

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | RL | 1 | 64115A5D0E1 | Shop at ECS Tuning | |||||
| 02 | Expansion valve | 1 | 64115A5D0F4 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | 3 | 07149356986 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Evaporator / Expansion valve?
- This technical diagram illustrates the Evaporator / Expansion valve within the Heater and Air Conditioning group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Evaporator (Part #64115A5D0E1).
- Which models use the hardware listed in this Evaporator / Expansion valve?
- The hardware and components featured in the Evaporator / Expansion valve are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Evaporator (64115A5D0E1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Evaporator / Expansion valve assembly?
- Each item in the Evaporator / Expansion valve corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Evaporator by locating its position on the schematic, which then links to the official BMW part number 64115A5D0E1 for the Heater and Air Conditioning section.
