Cooling water hoses for BMW 7 Series G70 M760eX (2025)

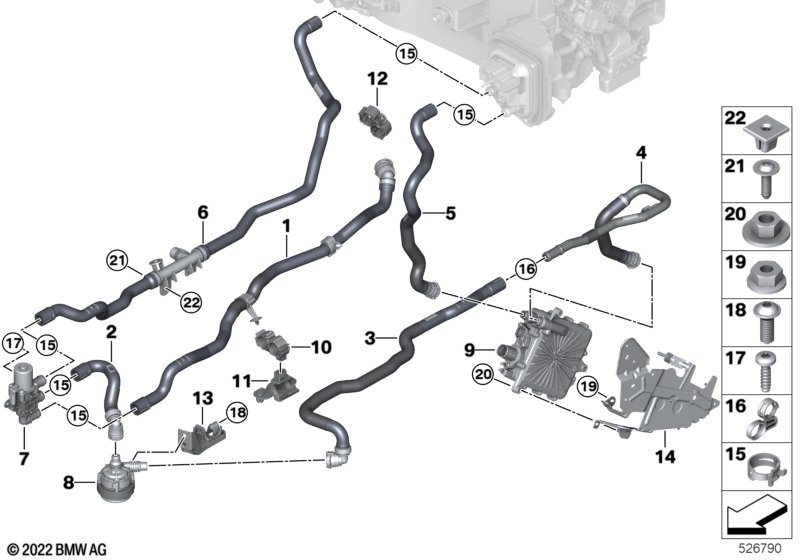

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant hose, supply 1 | 1 | 64218858597 | Shop at ECS Tuning | ||||||
| 02 | Coolant hose, supply 2 | 1 | 64219872137 | Shop at ECS Tuning | ||||||
| 03 | Coolant hose radiator feed 3 | 1 | 64219872138 | Shop at ECS Tuning | ||||||
| 04 | Coolant hose radiator feed 3 | 1 | 64219873679 | Shop at ECS Tuning | ||||||
| 05 | Coolant hose radiator feed 4 | 1 | 64219872139 | Shop at ECS Tuning | ||||||
| 06 | Coolant hose, return | 1 | 64219872162 | Shop at ECS Tuning | ||||||
| 07 | Changeover valve | 1 | 64115A1C977 | Shop at ECS Tuning | ||||||
| 08 | Auxiliary water pump | 1 | 64218841074 | Shop at ECS Tuning | ||||||
| 09 | Electric auxiliary heater | 1 | 64125B51865 | Shop at ECS Tuning | ||||||
| 10 | Combination holder | 1 | 64535A1CC87 | Shop at ECS Tuning | ||||||
| 11 | Combination holder | 1 | 64535A122B2 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 13 | Bracket for auxiliary water pump | 1 | 64219303628 | Shop at ECS Tuning | ||||||
| 14 | Halter Durchlauferhitzer | 1 | 64129873909 | Shop at ECS Tuning | ||||||
| 15 | Spring ring shell | D=25MM | 5 | 64213405930 | Shop at ECS Tuning | |||||
| 16 | Spring ring shell | MIT HANDYCLIP | 1 | 17127594631 | Shop at ECS Tuning | |||||
| 17 | Oval head screw | 35X12 | 3 | 11538570926 | Shop at ECS Tuning | |||||
| 18 | Fillister head screw | M6X16-ZNNIV-SI | 1 | 07149227852 | Shop at ECS Tuning | |||||
| 19 | Hex nut with plate | M6-8-ZNNIV SI | 6 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 20 | Hex nut with plate | M6 | 3 | 07147311066 | Shop at ECS Tuning | |||||
| 21 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Expanding nut | 1 | 07147348512 | Shop at ECS Tuning |
