Various grommets / seals for BMW 7 Series G70 740iX (2025)

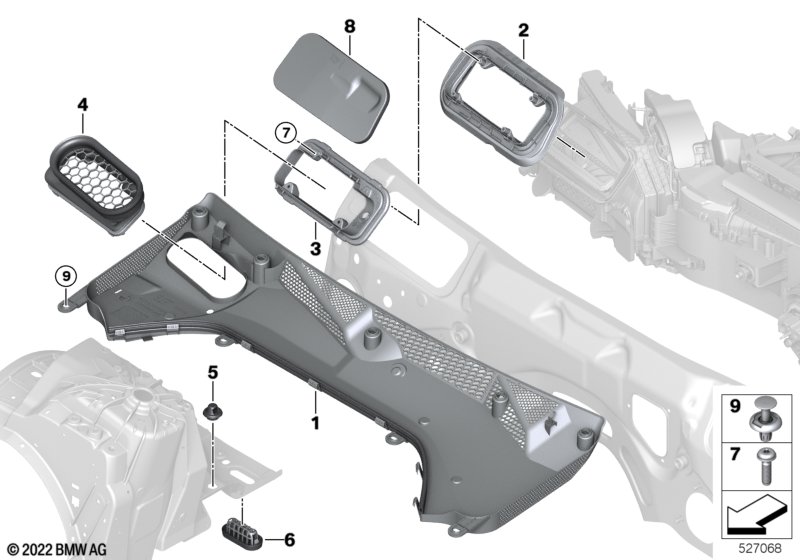

This Various grommets / seals technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luftansaugkasten | 1 | 64319870853 | Shop at ECS Tuning | ||||||
| 02 | Sealing frame | 1 | 64319870847 | Shop at ECS Tuning | ||||||
| 03 | Sealing frame | 1 | 64319870849 | Shop at ECS Tuning | ||||||
| 04 | Intake grill | 1 | 64319870851 | Shop at ECS Tuning | ||||||
| 05 | Grommet for emergency water drainage | 2 | 64319301589 | Shop at ECS Tuning | ||||||
| 06 | Residual water grommet | 2 | 64119335547 | Shop at ECS Tuning | ||||||
| 07 | Screw | 6X20 | 4 | 07129907489 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 9 | 07147401727 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740iX Various grommets / seals?
- This technical diagram illustrates the Various grommets / seals within the Heater and Air Conditioning group for the 7 Series G70 740iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Luftansaugkasten (Part #64319870853).
- Which models use the hardware listed in this Various grommets / seals?
- The hardware and components featured in the Various grommets / seals are specific to the 7 Series G70 740iX produced during 2025. These technical specifications ensure that parts like the Luftansaugkasten (64319870853) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various grommets / seals assembly?
- Each item in the Various grommets / seals corresponds to the numbered list below the illustration. For the 7 Series G70 740iX, you can identify the Luftansaugkasten by locating its position on the schematic, which then links to the official BMW part number 64319870853 for the Heater and Air Conditioning section.
