Housing parts for BMW 7 Series G70 M760eX (2025)

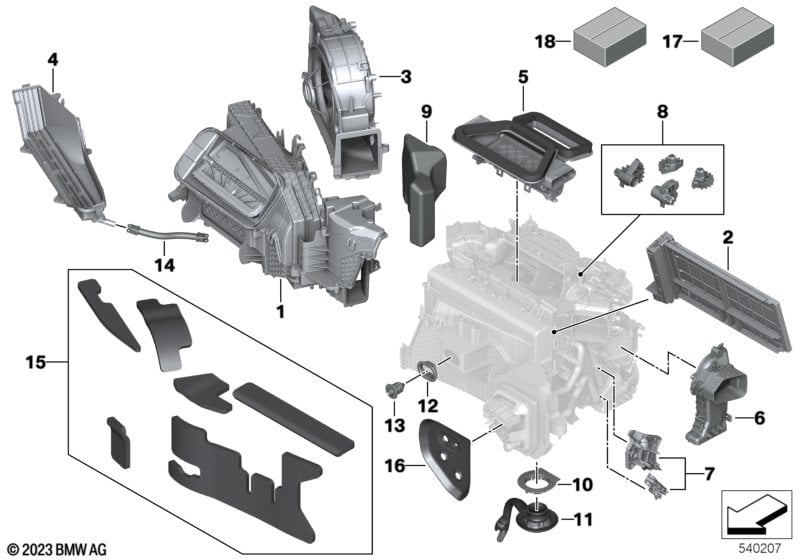

This Housing parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ansauggehäuse | LL | 1 | 64115A5D0D6 | Shop at ECS Tuning | |||||
| 02 | Deckel elektrischer Zuheizer | 1 | 64115A5D0C7 | Shop at ECS Tuning | ||||||
| 03 | Blower housing | LL | 1 | 64115A5D0D3 | Shop at ECS Tuning | |||||
| 04 | Deckel Mikrofilter | LL | 1 | 64115A5D0C8 | Shop at ECS Tuning | |||||
| 05 | Housing | 1 | 64115A5D0D2 | Shop at ECS Tuning | ||||||
| 06 | Front Fuss | LINKS | 1 | 64115A5D0E5 | Shop at ECS Tuning | |||||
| 06 | Front Fuss | RECHTS | 1 | 64115A5D0E6 | Shop at ECS Tuning | |||||
| 07 | Bracket set | LL | 1 | 64115A5D0E8 | Shop at ECS Tuning | |||||
| 08 | Kinematik | 1 | 64115A5D0E7 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease MH62 | 25G | 1 | 83238871831 | Shop at ECS Tuning | |||||
| 09 | Akustikblock | 1 | 64115A40B61 | Shop at ECS Tuning | ||||||
| 10 | Retaining ring for condensate drain | 1 | 64115A3BFF8 | Shop at ECS Tuning | ||||||
| 11 | Kondenswasserablaufschlauch | 1 | 64115A3BFF5 | Shop at ECS Tuning | ||||||
| 12 | Support | 1 | 64115A5D0E2 | Shop at ECS Tuning | ||||||
| 13 | Bush | 1 | 64119145230 | Shop at ECS Tuning | ||||||
| 14 | Outlet hose | 1 | 64115A48C69 | Shop at ECS Tuning | ||||||
| 15 | Sound insulation set | 1 | 64115A02177 | Shop at ECS Tuning | ||||||
| 16 | Stirnwanddichtung | 1 | 64115A5D0D1 | Shop at ECS Tuning | ||||||
| 17 | Kit screws | 1 | 64115A5D0C6 | Shop at ECS Tuning | ||||||
| 18 | Satz Auslassdichtungen | SATZ | 1 | 64115A5D0F2 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Housing parts?
- This technical diagram illustrates the Housing parts within the Heater and Air Conditioning group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Ansauggehäuse (Part #64115A5D0D6).
- Which models use the hardware listed in this Housing parts?
- The hardware and components featured in the Housing parts are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the Ansauggehäuse (64115A5D0D6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Housing parts assembly?
- Each item in the Housing parts corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Ansauggehäuse by locating its position on the schematic, which then links to the official BMW part number 64115A5D0D6 for the Heater and Air Conditioning section.
