Spiral housing with flaps for BMW 5 Series G60 Sedan 523d (2025)

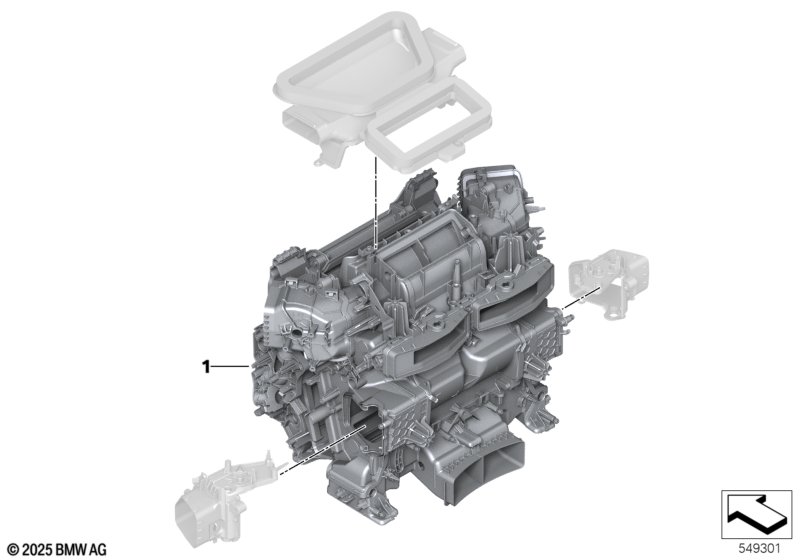

This Spiral housing with flaps technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 523d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=No |
|||||||||
| 01 | Verteilergehäuse Heiz-Klimagerät | 1 | 64115A67210 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease MH62 | 25G | 1 | 83238871831 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 01 | Verteilergehäuse Heiz-Klimagerät | 1 | 64115A5D0E3 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Lubricating grease MH62 | 25G | 1 | 83238871831 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
