Refrigerant lines, underfloor for BMW XM G09 XM (2025)

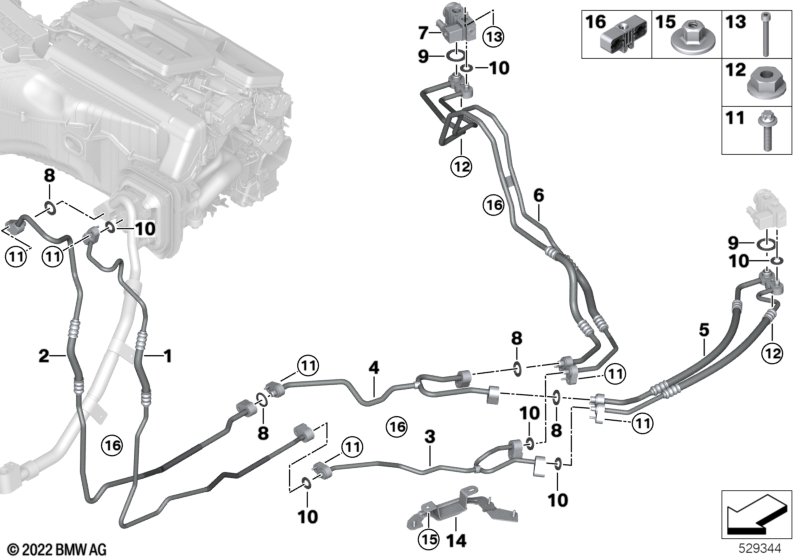

This Refrigerant lines, underfloor technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure line, underfloor | 1 | 64539872519 | Shop at ECS Tuning | ||||||
| 02 | Saugleitung Unterflur | 1 | 64539872520 | Shop at ECS Tuning | ||||||
| 03 | Druckleitung Verteilerrohr | 1 | 64539872523 | Shop at ECS Tuning | ||||||
| 04 | Suagleitung Verteilerrohr | 1 | 64539872521 | Shop at ECS Tuning | ||||||
| 05 | Kältemittelleitung Hochvoltspeicher 1 | HVS1 | 1 | 64539872522 | Shop at ECS Tuning | |||||
| 06 | Kältemittelleitung Hochvoltspeicher 2 | HVS2 | 1 | 64539872524 | Shop at ECS Tuning | |||||
| 07 | Electric expansion valve | 2 | 64505A0F0D0 | Shop at ECS Tuning | ||||||
| 08 | Gasket ring | D=11MM | 4 | 64539284018 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | D=17MM | 2 | 64539284019 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | D=8MM | 6 | 64539284020 | Shop at ECS Tuning | |||||
| 11 | Star-socket screw | BM6 X 25 | 8 | 07119908428 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M6-10-ZNNIV SI | 2 | 07129907467 | Shop at ECS Tuning | |||||
| 13 | Screw | 4 | 64509909280 | Shop at ECS Tuning | ||||||
| 14 | Bracket for air conditioning line | 1 | 64219874164 | Shop at ECS Tuning | ||||||
| 15 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Dual clip | 8 | 64127948367 | Shop at ECS Tuning |
