Cooling water hoses for BMW 5 Series G60 Sedan 520i (2024)

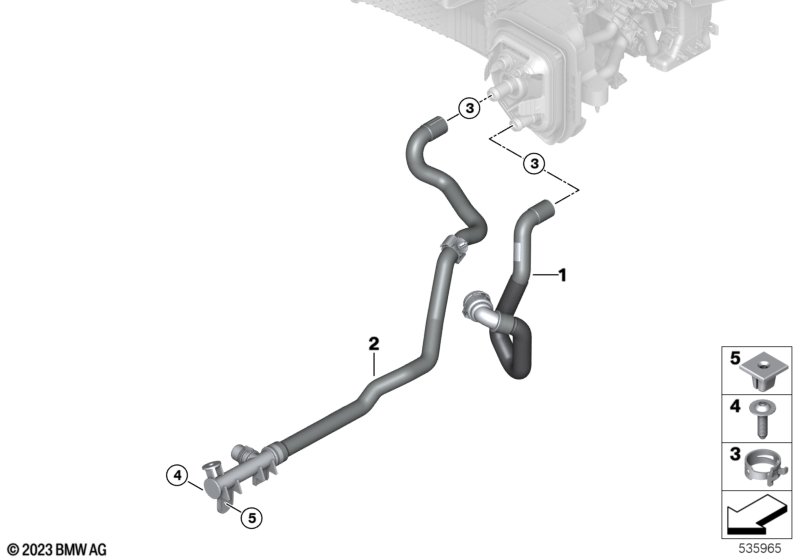

This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Coolant hose, supply 1 | 1 | 64218846463 | NoS | Shop at ECS Tuning | |||||
| 02 | Coolant hose, return | 1 | 64218846464 | NoS | Shop at ECS Tuning | |||||
| 03 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 1 | 07147348512 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Cooling water hoses?
- This technical diagram illustrates the Cooling water hoses within the Heater and Air Conditioning group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Coolant hose, supply 1 (Part #64218846463).
- Which models use the hardware listed in this Cooling water hoses?
- The hardware and components featured in the Cooling water hoses are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Coolant hose, supply 1 (64218846463) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling water hoses assembly?
- Each item in the Cooling water hoses corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Coolant hose, supply 1 by locating its position on the schematic, which then links to the official BMW part number 64218846463 for the Heater and Air Conditioning section.
