Various grommets / seals for BMW 5 Series G61 Touring 550eX (2025)

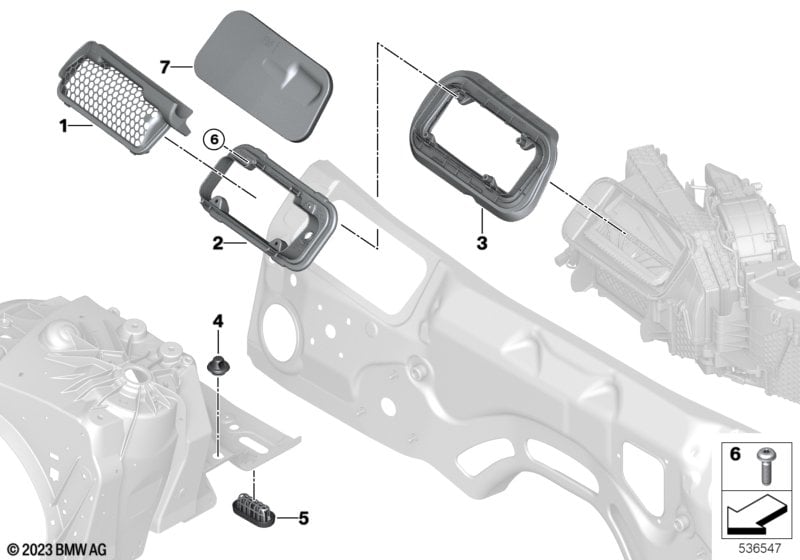

This Various grommets / seals technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Various grommets / seals
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake grill 1 64315A16003 Shop at ECS Tuning
02 Sealing frame 1 64319870849 Shop at ECS Tuning
03 Sealing frame 1 64319870847 Shop at ECS Tuning
04 Grommet for emergency water drainage 2 64319301589 Shop at ECS Tuning
05 Residual water grommet 2 64119335547 Shop at ECS Tuning
06 Screw 6X20 4 07129907489 Shop at ECS Tuning
