Air duct for BMW 5 Series G90 M5 M5 (2025)

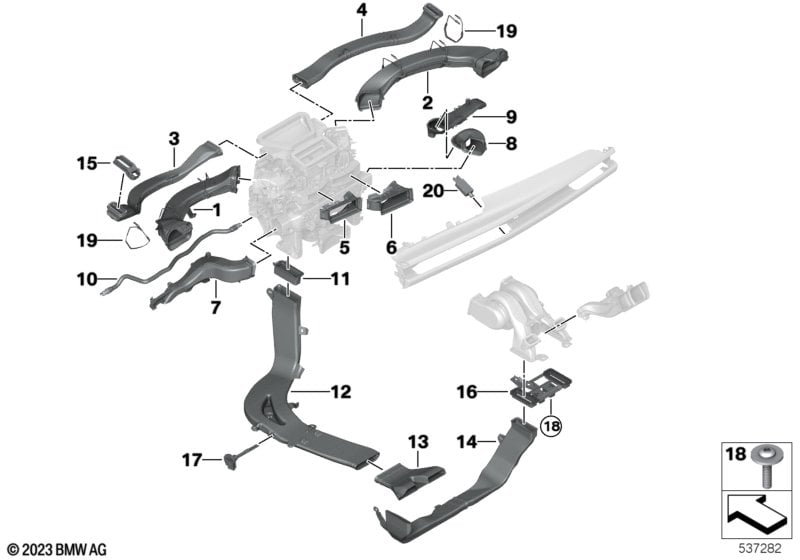

This Air duct technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cold-air duct, driver's side | 1 | 64225A62785 | NoS | Shop at ECS Tuning | |||||
| 02 | Cold-air duct, passenger's side | 1 | 64225A62787 | NoS | Shop at ECS Tuning | |||||
| 03 | Seitenscheibendefrostkanal | FS | 1 | 64225A12EB4 | NoS | Shop at ECS Tuning | ||||
| 04 | Seitenscheibendefrostkanal | BFS | 1 | 64225A12EB5 | NoS | Shop at ECS Tuning | ||||
| 05 | Cold air duct center | FS | 1 | 64225A29EC2 | NoS | Shop at ECS Tuning | ||||
| 06 | Cold air duct center | BFS | 1 | 64225A29EC4 | NoS | Shop at ECS Tuning | ||||
| 07 | Luftkanal Fussraum | 1 | 64229870564 | Shop at ECS Tuning | ||||||
| 08 | Fussraumkanal Adapter | 1 | 64229870568 | Shop at ECS Tuning | ||||||
| 09 | Luftkanal Fussraum | 1 | 64229870565 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 10 | MGU Kühlung | 1 | 64225A169D5 | Shop at ECS Tuning | ||||||
| 11 | Schiebestück | LINKS | 1 | 64115A4E7C9 | Shop at ECS Tuning | |||||
| 11 | Schiebestück | RECHTS | 1 | 64115A4E7D0 | Shop at ECS Tuning | |||||
| 12 | Rear comp. heating duct | 1 | 64229870185 | Shop at ECS Tuning | ||||||
| 12 | Rear comp. heating duct | 1 | 64229870186 | Shop at ECS Tuning | ||||||
| 13 | Rear comp. heating duct | LINKS | 1 | 64225A0A277 | NoS | Shop at ECS Tuning | ||||
| 13 | Rear comp. heating duct | RECHTS | 1 | 64225A0A278 | NoS | Shop at ECS Tuning | ||||
| 14 | Luftkanal B-Säule | LINKS | 1 | 64225A1E1A5 | NoS | Shop at ECS Tuning | ||||
| 14 | Luftkanal B-Säule | RECHTS | 1 | 64225A1E1A6 | NoS | Shop at ECS Tuning | ||||
| 15 | Holder | 2 | 64225A439C4 | NoS | Shop at ECS Tuning | |||||
| 16 | Adapter plate | 1 | 51165A130E6 | NoS | Shop at ECS Tuning | |||||
| 17 | Temperature sensor | 2 | 64226915391 | $33.45 | Shop at ECS Tuning | |||||
| 18 | Oval-head machine screw, self-locking | M5 | 4 | 07149362248 | Shop at ECS Tuning | |||||
| 19 | Rubber band | 2 | 64225A7CB28 | Shop at ECS Tuning | ||||||
| 20 | Temperature sensor | 1 | 61315A8B532 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
