Fuel supply/pump/tubing for BMW 5 Series G60 Sedan 520i (2024)

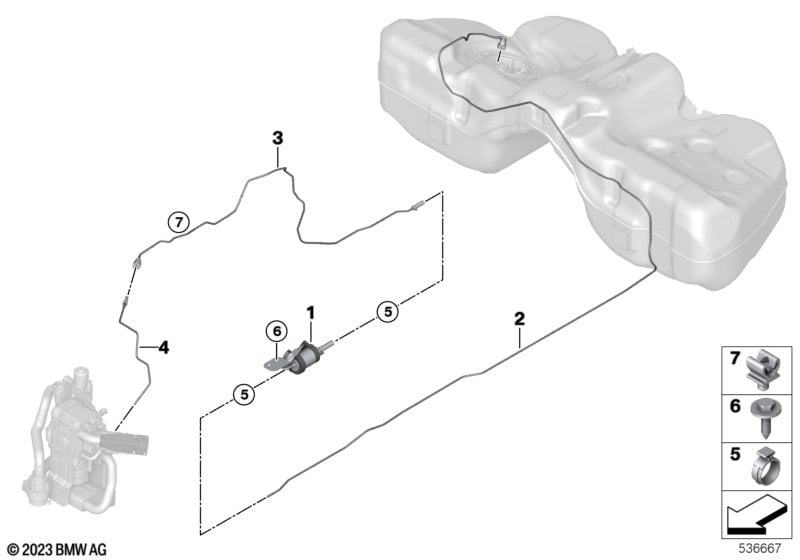

This Fuel supply/pump/tubing technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=Yes |
||||||||
| 01 | Fuel pump | 1 | 64129320479 | Shop at ECS Tuning | ||||||
| 02 | Kraftstoffschlauch saugseitig | 1 | 64127911088 | NoS | Shop at ECS Tuning | |||||
| 03 | Kraftstoffschlauch druckseitig | 1 | 64125A81DB9 | NoS | Shop at ECS Tuning | |||||
| 04 | Fuel pipe | 1 | 64125A15AB6 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | 9,4 - 11,9MM | 1 | 16141183085 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | TS5X20 SW8 D=16 | 2 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Clip retainer | 1 | 34306766380 | $0.35 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Fuel supply/pump/tubing?
- This technical diagram illustrates the Fuel supply/pump/tubing within the Heater and Air Conditioning group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pump (Part #64129320479).
- Which models use the hardware listed in this Fuel supply/pump/tubing?
- The hardware and components featured in the Fuel supply/pump/tubing are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Fuel pump (64129320479) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/tubing assembly?
- Each item in the Fuel supply/pump/tubing corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Fuel pump by locating its position on the schematic, which then links to the official BMW part number 64129320479 for the Heater and Air Conditioning section.
