Air outlet for BMW 5 Series G60 Sedan 520i (2024)

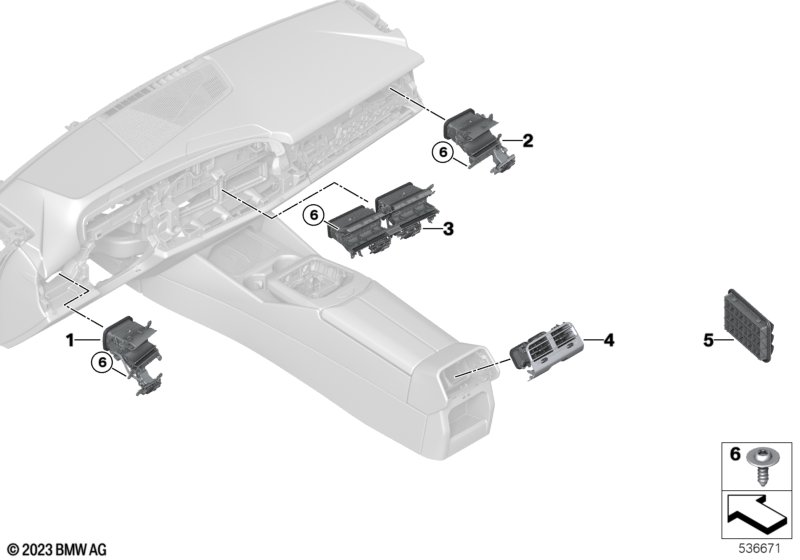

This Air outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Air outlet
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fresh-air vent, driver's side 1 64115A62751 Shop at ECS Tuning
02 Fresh air grille AT passenger's side 1 64115A62752 Shop at ECS Tuning
03 Fresh air grille center 1 64115A62747 Shop at ECS Tuning
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
04 Fresh air grille rear room 1 64225A13166 Shop at ECS Tuning
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
04 Fresh air grille rear room 1 64225A13167 Shop at ECS Tuning
05 Rear ventilation 2 64229176945 Shop at ECS Tuning
06 Oval-head screw with washer DELTA PT4X12 18 07149200941 Shop at ECS Tuning
