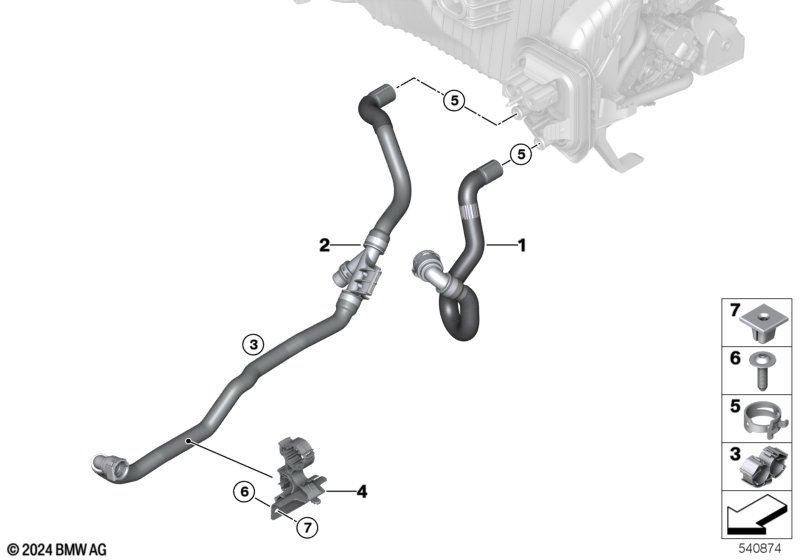

Cooling water hoses for BMW 4 Series G22 Coupé LCI M440iX (2025)
This Cooling water hoses technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| 01 | Coolant hose, supply | 1 | 64218852201 | NoS | Shop at ECS Tuning | |||||
| 02 | Kühlmittelschlauch Rücklauf | 1 | 64218852202 | NoS | Shop at ECS Tuning | |||||
| 03 | Hose clamp, double | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 04 | Combination bracket | 1 | 64536806376 | Shop at ECS Tuning | ||||||
| 05 | Spring ring shell | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 2 | 07147348512 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
