Housing parts - air conditioning for BMW 3 Series E46 320d (2005)

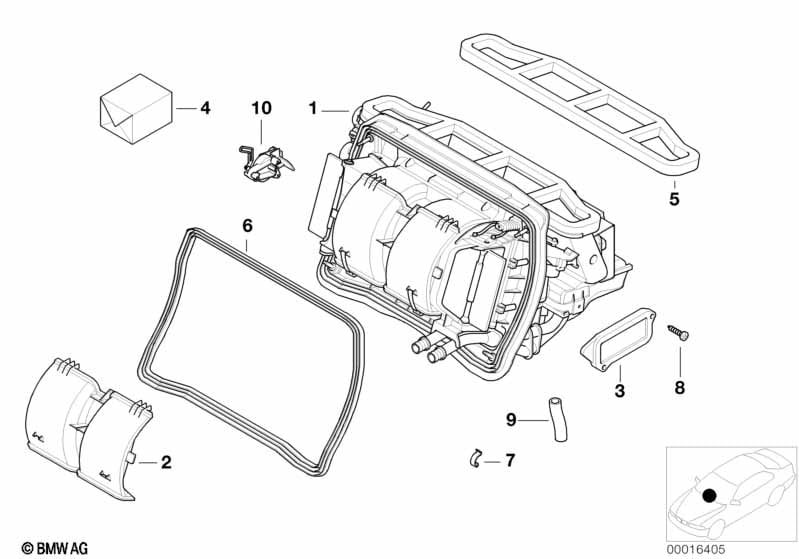

This Housing parts - air conditioning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater/air condit.unit | 1 | 64118372792 | $416.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covr blower | 1 | 64118372793 | $12.65 | Shop at ECS Tuning | |||||
| 03 | Heater radiator cover | 1 | 64118380217 | $4.47 | Shop at ECS Tuning | |||||
| 04 | Set small parts f air cond.adjust.lever | 1 | 64118372791 | $8.37 | Shop at ECS Tuning | |||||
| 05 | Sealing frame | 1 | 64118372794 | $8.56 | Shop at ECS Tuning | |||||
| 06 | Profile-gasket | 1 | 64118372795 | $9.95 | Shop at ECS Tuning | |||||
| 07 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 08 | Screw | 40X14 | X | 64118391265 | $0.22 | Shop at ECS Tuning | ||||
| 09 | Condensation water outlet hose | 1 | 64116906545 | $3.70 | Shop at ECS Tuning | |||||
| 10 | Gearbox flap position | 1 | 64118386936 | $43.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Housing parts - air conditioning?
- This technical diagram illustrates the Housing parts - air conditioning within the Heater and Air Conditioning group for the 3 Series E46 320d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Empty housing f heater/air condit.unit (Part #64118372792).
- Which models use the hardware listed in this Housing parts - air conditioning?
- The hardware and components featured in the Housing parts - air conditioning are specific to the 3 Series E46 320d produced during 2005. These technical specifications ensure that parts like the Empty housing f heater/air condit.unit (64118372792) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Housing parts - air conditioning assembly?
- Each item in the Housing parts - air conditioning corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Empty housing f heater/air condit.unit by locating its position on the schematic, which then links to the official BMW part number 64118372792 for the Heater and Air Conditioning section.
