Heater radiator air conditioning for BMW 3 Series E46 330d (2003)

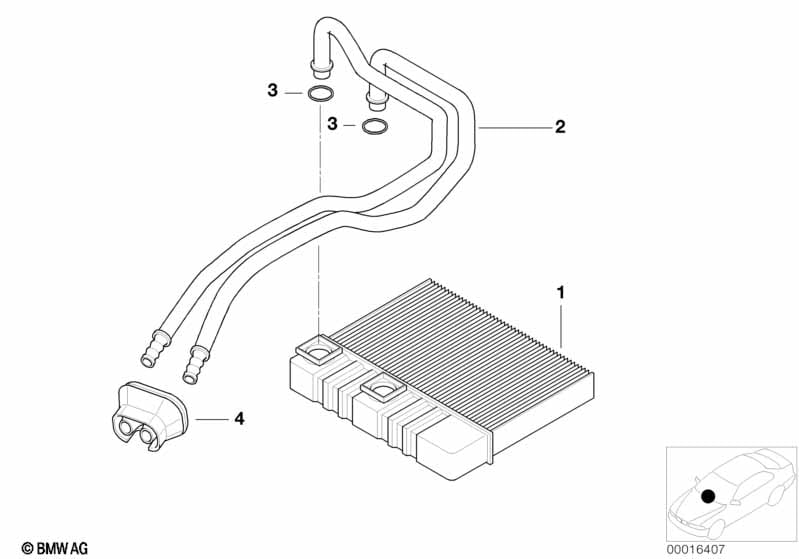

This Heater radiator air conditioning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator air conditioning | 1 | 64118372783 | $111.43 | Shop at ECS Tuning | |||||
| 02 | Aluminium double pipe | 1 | 64118372784 | $41.43 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | D=17.12MM | 2 | 64118377824 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Grommet for water pipe | 1 | 64118368531 | $6.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Heater radiator air conditioning?
- This technical diagram illustrates the Heater radiator air conditioning within the Heater and Air Conditioning group for the 3 Series E46 330d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Heater radiator air conditioning (Part #64118372783).
- Which models use the hardware listed in this Heater radiator air conditioning?
- The hardware and components featured in the Heater radiator air conditioning are specific to the 3 Series E46 330d produced during 2003. These technical specifications ensure that parts like the Heater radiator air conditioning (64118372783) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator air conditioning assembly?
- Each item in the Heater radiator air conditioning corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Heater radiator air conditioning by locating its position on the schematic, which then links to the official BMW part number 64118372783 for the Heater and Air Conditioning section.
