Electric parts for AC unit for BMW 3 Series E46 325i (2003)

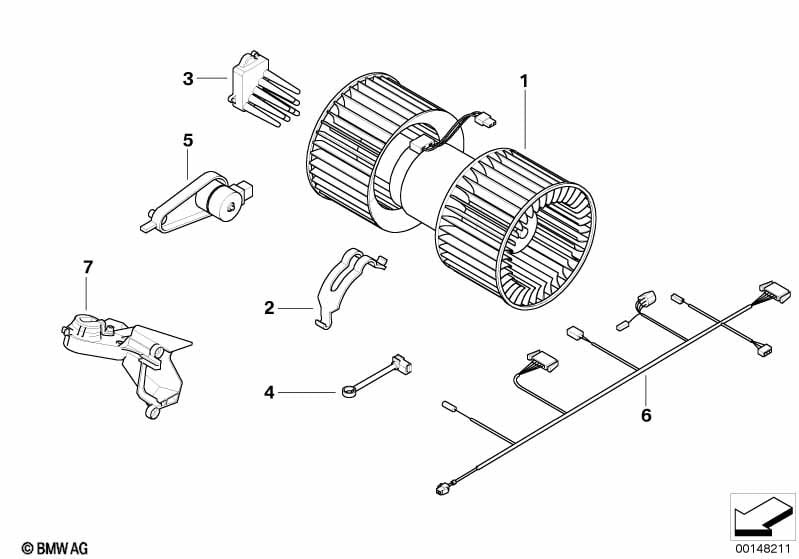

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 64119204154 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 64118390874 | $5.02 | Shop at ECS Tuning | |||||
| 03 | Final Stage Unit | 1 | 64116923204 | $117.73 | Shop at ECS Tuning | |||||
| 04 | Temperature sensor, heater/evaporator | 2 | 64116930015 | $33.45 | Shop at ECS Tuning | |||||
| 05 | positng. drive, fresh air/recirc. left | 1 | 09/2008 | 64116934823 | $82.13 | Shop at ECS Tuning | ||||
| 05 | positng. drive, fresh air/recirc. right | 1 | 09/2008 | 64116934824 | $82.13 | Shop at ECS Tuning | ||||
| Only applies to ventilation flap | ||||||||||
| 05 | Actuator | 1 | 09/2008 | 64116934821 | $82.13 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO LEG ROOM FLAP | ||||||||||
| 05 | Actuator | 1 | 09/2008 | 64116934825 | $82.13 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DEFROSTER FLAP | ||||||||||
| 05 | Actuator | 1 | 04/2003 | 64116934822 | $82.13 | Shop at ECS Tuning | ||||
| only applies to Gear mechanism, flap adjustment |
||||||||||
| 05 | Actuator | 1 | 09/2008 | 64116934822 | $82.13 | Shop at ECS Tuning | ||||
| 06 | Heater/air conditioning wiring set | 1 | 61126910086 | $96.28 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 06 | Heater/air conditioning wiring set | 1 | 61126910085 | $96.28 | Shop at ECS Tuning | |||||
| 07 | Bracket for control motor | 1 | 64116979467 | $7.93 | Shop at ECS Tuning | |||||
