Spiral housing with flaps for BMW 2 Series F74 Gran Coupé 216 (2025)

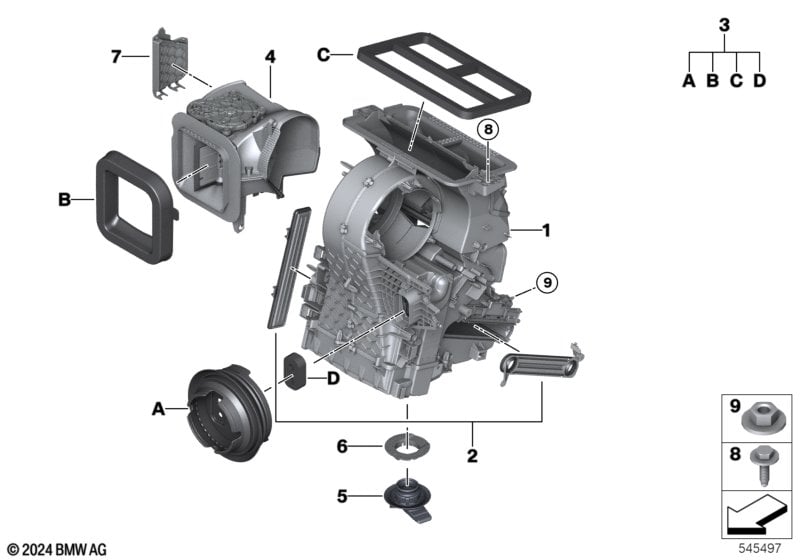

This Spiral housing with flaps technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
S534A=No |
|||||||||
| 01 | Distribution housing a/c unit | MIT VERDAMPFER | 1 | 64115A4D100 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 01 | Distribution housing a/c unit | MIT VERDAMPFER | 1 | 64115A4D0F6 | Shop at ECS Tuning | |||||
| 02 | Set cover | 1 | 64115A5D528 | Shop at ECS Tuning | ||||||
| 03 | Set of seals | 1 | 64115A5D530 | Shop at ECS Tuning | ||||||
| 04 | Air duct | 1 | 64115A4D0E5 | Shop at ECS Tuning | ||||||
| 05 | Condensation-water drain | 1 | 64115B63470 | Shop at ECS Tuning | ||||||
| 06 | Retaining ring for condensate drain | 1 | 64115B63471 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X20-8.8 | 2 | 07119907898 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M6 | 2 | 07147311066 | Shop at ECS Tuning | |||||
