Refrigerant lines, underfloor for BMW 5 Series G90 M5 M5 (2025)

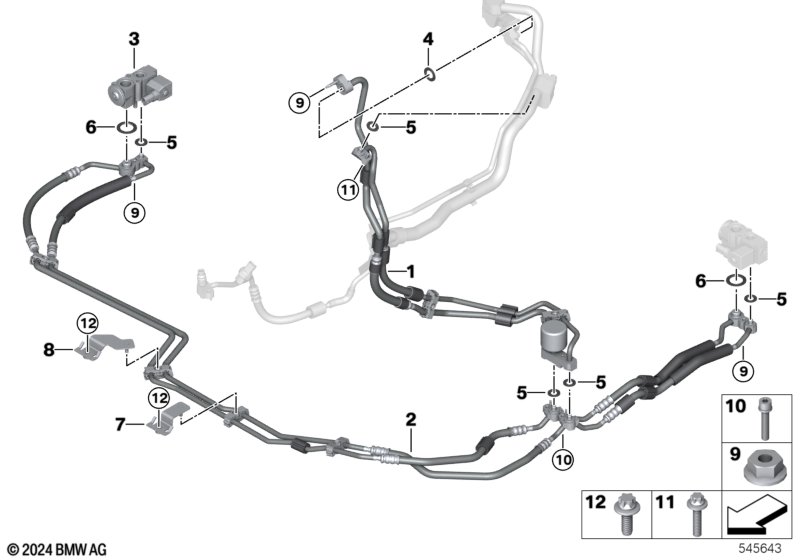

This Refrigerant lines, underfloor technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Double pipe 1 | 1 | 64537885967 | NoS | Shop at ECS Tuning | |||||
| 02 | Double Pipe 2 | 1 | 64537885966 | NoS | Shop at ECS Tuning | |||||
| 03 | Electric expansion valve | 2 | 64505A0F0D0 | Shop at ECS Tuning | ||||||
| 04 | Gasket ring | D=11MM | 1 | 64539284018 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | D=8MM | 5 | 64539284020 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | D=17MM | 2 | 64539284019 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 64507886556 | NoS | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 64507886557 | NoS | Shop at ECS Tuning | |||||
| 09 | Hex nut | M6-10-ZNNIV SI | 3 | 07129907467 | Shop at ECS Tuning | |||||
| 10 | ISA screw | M6X30-10.9 | 2 | 07129905795 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Star-socket screw | BM6 X 25 | 1 | 07119908428 | Shop at ECS Tuning | |||||
| 12 | ASA screw, self-threading | M6X16 | 2 | 34509804151 | Shop at ECS Tuning |
