Radio for BMW 3 Series E30 318i (1993)

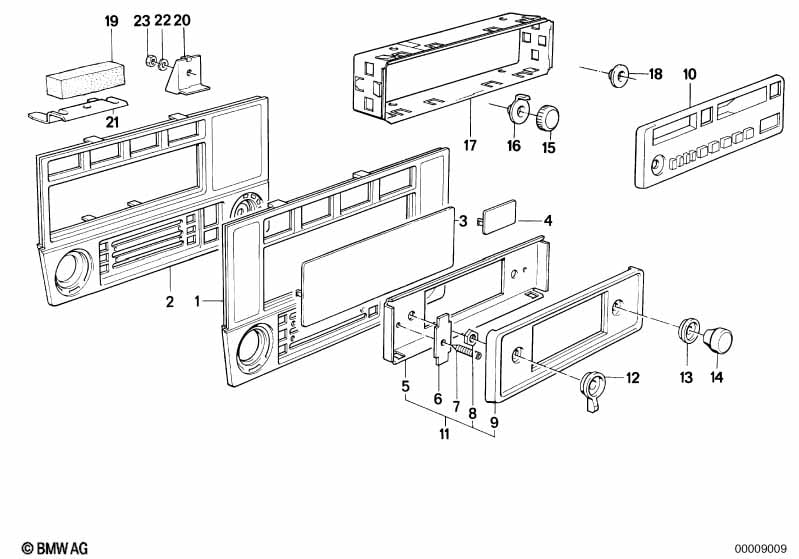

This Radio technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Radio frame | 1 | 64111368515 | $25.40 | Shop at ECS Tuning | |||||
| 04 | Plug | 4 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 05 | Carrier | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 06 | Holder | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Grub screw | M6X12 | 2 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 08 | Nut | 2 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 10 | Cover plate radio with station buttons | BAVARIA C | 1 | 65111379334 | $47.99 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | BAV.MO.DIGIT.II | 1 | 65111388399 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover plate radio with station buttons | BAVARIA CRIII | 1 | 65121375940 | $24.55 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover plate radio with station buttons | BAV.CR DIGIT. | 1 | 65121375950 | $62.22 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover plate radio with station buttons | BAVARIA EUROPA | 1 | 65121376101 | $23.72 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover plate radio with station buttons | BAV.EUR.DIGIT. | 1 | 65121376102 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover plate radio with station buttons | BAVARIA C REVER | 1 | 65121379335 | $56.92 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover plate radio with station buttons | BAVARIA C EURO | 1 | 65121379336 | $47.99 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | BAVARIA (A) | 1 | 65121379987 | $25.11 | ENDED | Shop at ECS Tuning | |||
| 11 | Radio installation-supplementary set | STEREO | 1 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 12 | Tone control handle | MONO/STEREO | 1 | 65111372059 | $1.41 | ENDED | Shop at ECS Tuning | |||
| 13 | Decorative washer | MONO/STEREO | 1 | 65111364566 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rotary knob | 2 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rotary knob | BMW | 1 | 65111376876 | $2.86 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Radio Bavaria C Exclusive | 4-OHM | X | 65129058625 | ENDED | Shop at ECS Tuning | ||||
| -- | Radio Bavaria C Exclusive | 4-OHM | X | 65129061102 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rotary knob | BMW | 1 | 65121377999 | $3.05 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA RADIO BAVARIA C RADIO BAVARIA C EURO RADIO BAVARIA C REVERSE |
||||||||||
| 15 | Rotary knob | BMW | 1 | 65121377999 | $3.05 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA CR III RADIO BAVARIA EUROPA RADIO BAVARIA CR DIGITAL RADIO BAVARIA EUROPA DIGITAL |
||||||||||
| 16 | Tone control handle | STEREO | 1 | 65121375947 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 17 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 18 | Decorative washer | STEREO | 1 | 65121375948 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 20 | Extension | 1 | 65111372547 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 21 | Support | 1 | 65111370841 | $1.18 | ENDED | Shop at ECS Tuning | ||||
| 22 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Radio?
- This technical diagram illustrates the Radio within the Audio, Navigation, Electronic Systems group for the 3 Series E30 318i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Radio frame (Part #64111368515).
- Which models use the hardware listed in this Radio?
- The hardware and components featured in the Radio are specific to the 3 Series E30 318i produced during 1993. These technical specifications ensure that parts like the Radio frame (64111368515) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio assembly?
- Each item in the Radio corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Radio frame by locating its position on the schematic, which then links to the official BMW part number 64111368515 for the Audio, Navigation, Electronic Systems section.
