Radio for BMW 3 Series E30 320i (1992)

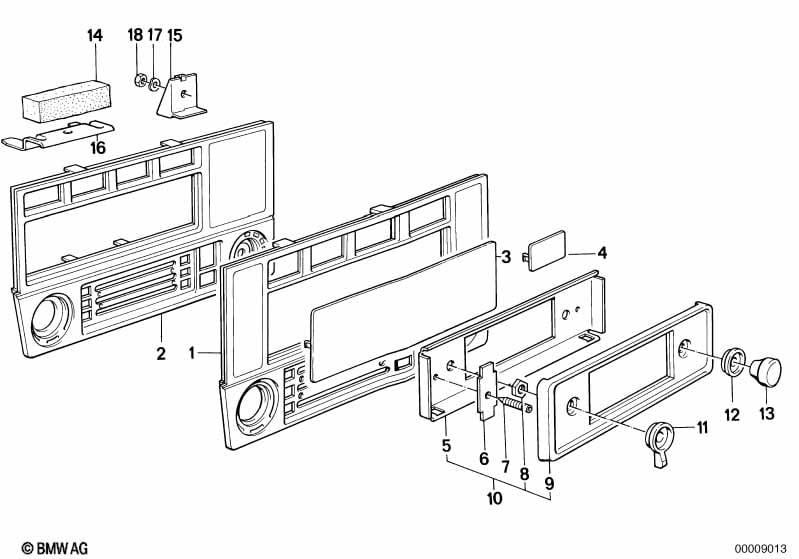

This Radio technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Plug | 4 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 05 | Carrier | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 06 | Holder | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Grub screw | M6X12 | 2 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 08 | Nut | 2 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 10 | Radio installation-supplementary set | STEREO | 1 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 14 | Felt strip | 40X70X0,8MM | 1 | 01/1993 | 65771377052 | $0.47 | ENDED | Shop at ECS Tuning | ||
| 14 | Set of felt strips | SET | 1 | 01/1993 | 52207276398 | ENDED | Shop at ECS Tuning | |||
| 15 | Extension | 1 | 65111372547 | $1.34 | ENDED | Shop at ECS Tuning | ||||
| 16 | Support | 1 | 65111370841 | $1.18 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
