Radio-installation parts for BMW 3 Series E21 323i (1982)

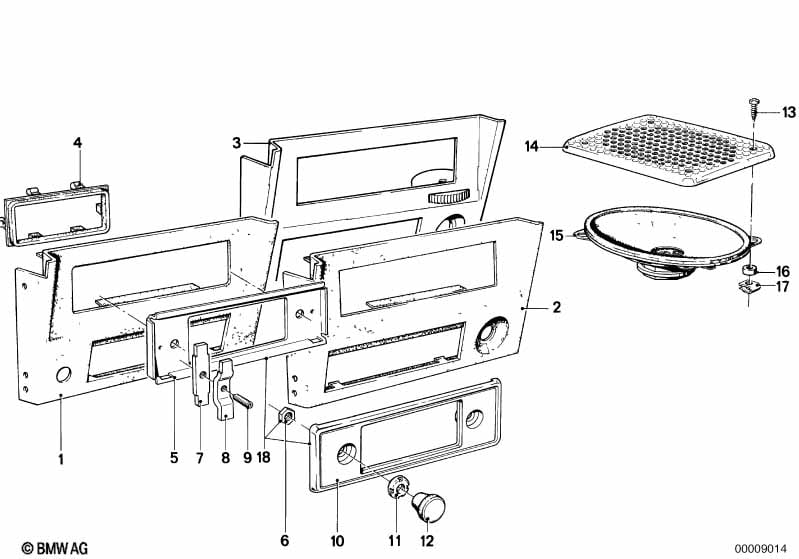

This Radio-installation parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cover | 1 | 08/1979 | 65111367137 | $37.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering with fading control | 1 | 08/1979 | 65119056640 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 65111360009 | $2.46 | Shop at ECS Tuning | |||||
| 05 | Carrier | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 06 | Nut | 2 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 07 | Holder | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Holder | 2 | 65111363708 | $10.71 | ENDED | Shop at ECS Tuning | ||||
| 09 | Grub screw | M6X12 | 2 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 11 | Nut | 2 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rotary knob | 2 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 13 | Recessed oval head sheet-metal screw | ST4,2X19 | 8 | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Recessed oval head sheet-metal screw | ST4,2X16 | 8 | 07119902497 | $0.13 | Shop at ECS Tuning | ||||
| 14 | Cover Loudspeaker | ANTHRAZIT | 4 | 65121367715 | $7.96 | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | 4-OHM/4/6W | 4 | 65121357435 | ENDED | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | 4-OHM/8/20W | 4 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC |
||||||||||
| 15 | Loudspeaker | 4-OHM/8/20W | 4 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 16 | Shim | 5,5MM | 8 | 65111374608 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 17 | Body nut | ST4,2-2ZNS | 8 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Body nut | B4,2 | 8 | 65111360120 | $0.23 | Shop at ECS Tuning | ||||
| 18 | Radio installation-supplementary set | STEREO | 1 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
