Single components stereo system for BMW 7 Series E23 733i (1982)

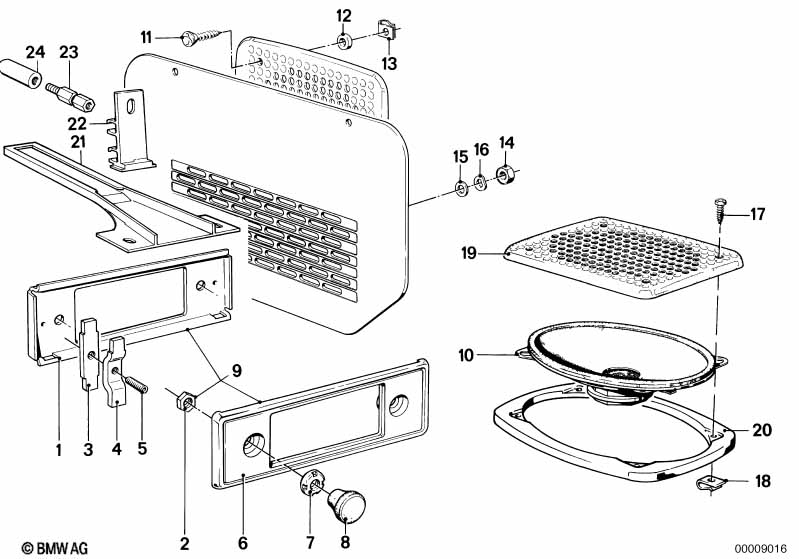

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 02 | Nut | 2 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Holder | 2 | 65111363707 | $10.71 | Shop at ECS Tuning | |||||
| 05 | Grub screw | M6X12 | 2 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 07 | Nut | 2 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rotary knob | 2 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 09 | Radio installation-supplementary set | STEREO | 1 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 10 | Loudspeaker | 4-OHM/8/20W | X | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 15 | Washer | 9X4,3X0,8-200HV | 8 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 16 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Recessed oval head sheet-metal screw | ST4,2X19 | X | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Body nut | ST4,2-3-ZNS3 | X | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Cover Loudspeaker | MARINEBLAU | 2 | 65121364886 | $4.80 | ENDED | Shop at ECS Tuning | |||
| 19 | Cover Loudspeaker | FARNGRUEN | 2 | 65121364887 | ENDED | Shop at ECS Tuning | ||||
| 19 | Cover Loudspeaker | HELLGRAU | 2 | 65121364888 | ENDED | Shop at ECS Tuning | ||||
| 19 | Cover Loudspeaker | NYLONBRAUN | 2 | 65121364889 | ENDED | Shop at ECS Tuning | ||||
| 19 | Cover Loudspeaker | ANTHRAZIT | 2 | 65121367715 | $7.96 | Shop at ECS Tuning | ||||
| 21 | Guide rail | 1 | 07/1983 | 65111363623 | ENDED | Shop at ECS Tuning | ||||
| 22 | Bracket rear | 1 | 07/1983 | 65111363622 | $0.93 | Shop at ECS Tuning |
