Single components stereo system for BMW 3 Series E30 320i (1992)

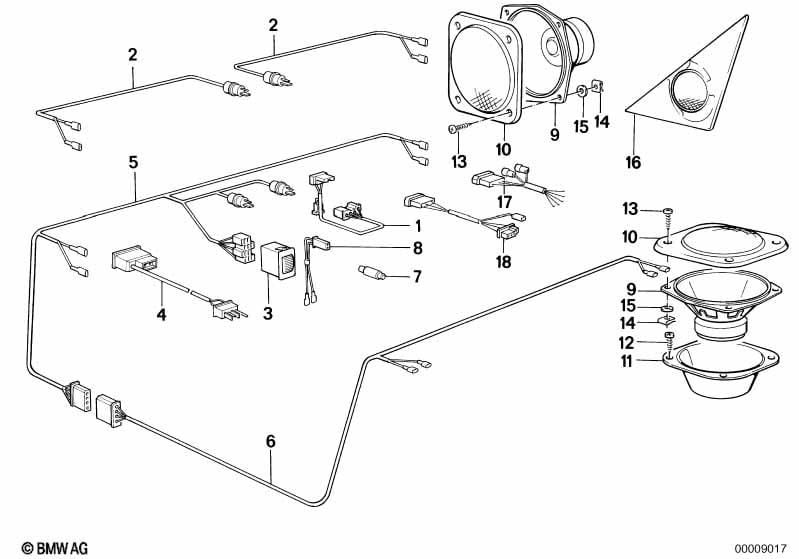

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Wiring set | 1 | 65111370845 | $19.89 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring front | MONO | 2 | 65111367856 | $9.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Fader control with flat-type connector | 1 | 65121368769 | $68.44 | Shop at ECS Tuning | |||||
| 03 | Fader control with cylindrical connector | 1 | 65121379048 | $39.55 | Shop at ECS Tuning | |||||
| For vehicles with National version japan ONLY APPLIES TO RADIO BMW ALPINE RADIO BMW PIONEER |
L807A=Yes |
|||||||||
| 04 | Adapter lead | HIFI/4-KANAL | 1 | 61101388934 | $36.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan NOT SUITABLE FOR RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
L807A=Yes |
|||||||||
| 04 | Adapter | 1 | 09/1986 | 82119416168 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Wiring 4-hanel front | STEREO | 1 | 61121386554 | $87.62 | ENDED | Shop at ECS Tuning | |||
| 05 | Wiring front | STEREO | 1 | 09/1987 | 61121386442 | $65.01 | ENDED | Shop at ECS Tuning | ||
| 06 | Wiring rear | STEREO | 1 | 65121386553 | $51.06 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse | T3,15 | 1 | 07119976100 | $3.64 | Shop at ECS Tuning | ||||
| 07 | Fuse | T2,0 | 1 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse | T2,5 | 1 | 07119976102 | $3.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse | T4,0 | 1 | 07119976103 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse | T10 | 1 | 61131380468 | $1.88 | ENDED | Shop at ECS Tuning | |||
| 09 | Loudspeaker | 8 OHM/18/20W | 2 | 65131381250 | $43.55 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover Loudspeaker | 2 | 65131370803 | $11.43 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cup | 2 | 51711884176 | $8.66 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST4,2X13-Z2 | 8 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST4,2X25 | 8 | 07119907796 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Body nut | ST4,2-1-ZNS3 | 8 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Expanding nut | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Washer | 8 | 65211369479 | ENDED | Shop at ECS Tuning | |||||
| 16 | Loudspeaker left Loudspeaker left | 8OHM/25/40W | 1 | 65131385947 | $59.84 | Shop at ECS Tuning | ||||
| 16 | Loudspeaker right Loudspeaker right | 8OHM/25/40W | 1 | 65131385948 | $65.81 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
