Radio for BMW 5 Series E12 520i (1978)

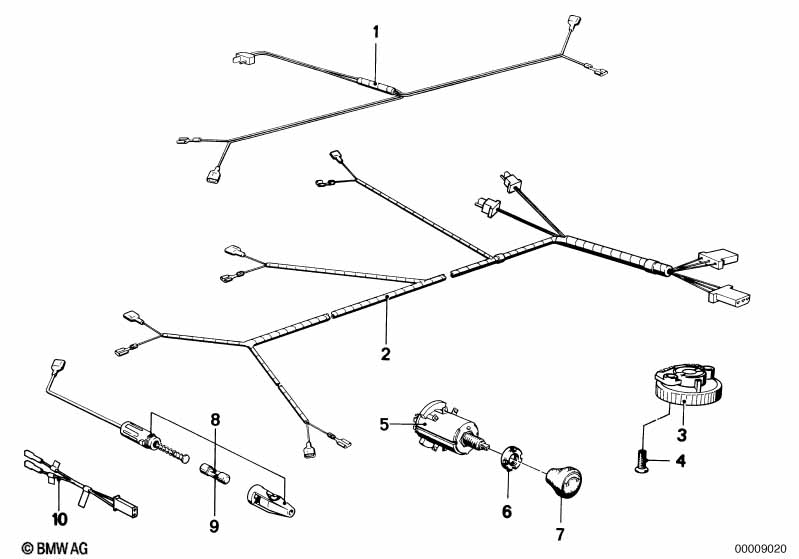

This Radio technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring front | MONO | 1 | 02/1977 | 65111367856 | $9.68 | ENDED | Shop at ECS Tuning | ||
| 02 | Wiring set | STEREO | 1 | 02/1977 | 65111368653 | ENDED | Shop at ECS Tuning | |||
| 03 | Fading control | STEREO | 1 | 02/1977 | 65111363672 | $49.50 | ENDED | Shop at ECS Tuning | ||
| 04 | Csk.fillister head srew | M3X6 | 2 | 02/1977 | 07119928403 | $0.96 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 05 | Fader control with flat-type connector | 6 POLIG | 1 | 02/1977 | 65111366390 | $30.95 | Shop at ECS Tuning | |||
| 06 | Nut | 1 | 02/1977 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Rotary knob | 1 | 02/1977 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | |||
| 08 | Battery cable | 1 | 02/1977 | 65111364049 | $4.41 | Shop at ECS Tuning | ||||
| 09 | Fuse | T2,0 | 1 | 02/1977 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | ||
| 09 | Fuse | T2,5 | 1 | 02/1977 | 07119976102 | $3.15 | ENDED | Shop at ECS Tuning | ||
| 09 | Fuse | 5A | 1 | 02/1977 | 65111366117 | $1.55 | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC |
||||||||||
| 10 | Adapter lead | 1 | 02/1977 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | |||
