Radio for BMW 6 Series E24 633CSi (1984)

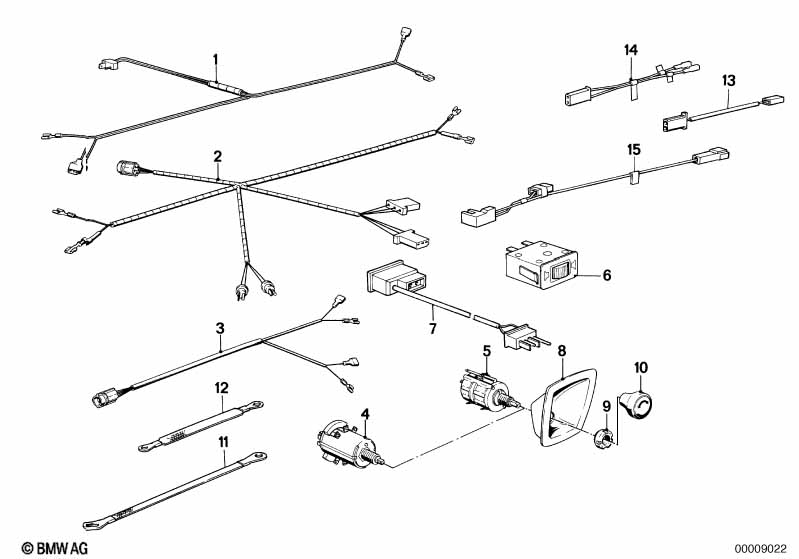

This Radio technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Fader control with flat-type connector | 1 | 65121368769 | $68.44 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 07 | Connection cable 4-channel | 1 | 09/1986 | 61121386161 | $59.78 | ENDED | Shop at ECS Tuning | |||
| 11 | Earth strap | 20X400MM | 1 | 65319055973 | $18.61 | ENDED | Shop at ECS Tuning | |||
| 12 | Earth strap for rocker cover | L=170 | 1 | 65311364692 | $5.90 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Radio?
- This technical diagram illustrates the Radio within the Audio, Navigation, Electronic Systems group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Fader control with flat-type connector (Part #65121368769).
- Which models use the hardware listed in this Radio?
- The hardware and components featured in the Radio are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Fader control with flat-type connector (65121368769) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio assembly?
- Each item in the Radio corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Fader control with flat-type connector by locating its position on the schematic, which then links to the official BMW part number 65121368769 for the Audio, Navigation, Electronic Systems section.
