Single components stereo system for BMW 7 Series E23 735i (1986)

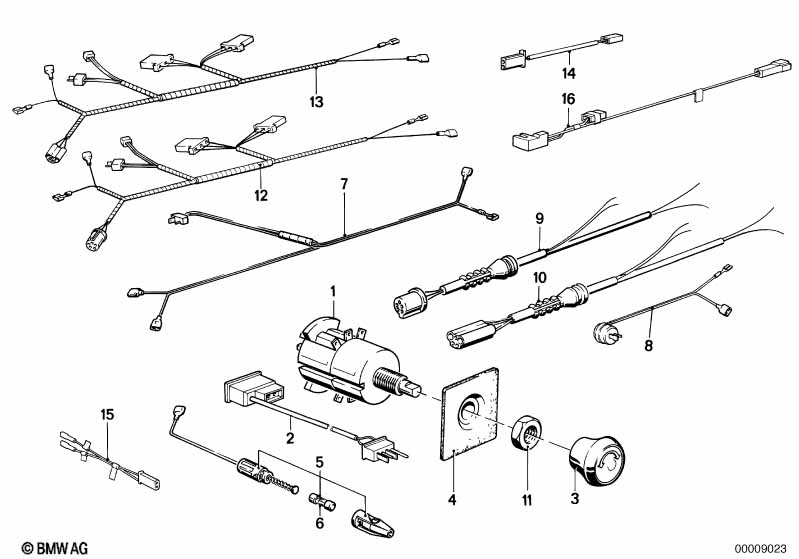

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fader control with flat-type connector | 6 POLIG | 1 | 65111366390 | $30.95 | Shop at ECS Tuning | ||||
| NOT SUITABLE FOR RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 02 | Adapter lead | STEREO | 1 | 09/1986 | 82119416306 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 02 | Connection cable 4-channel | 1 | 09/1986 | 61121386161 | $59.78 | ENDED | Shop at ECS Tuning | |||
| 03 | Knob temperature | 1 | 65111367858 | $1.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket fading control | 1 | 65111362051 | ENDED | Shop at ECS Tuning | |||||
| 05 | Battery cable | 1 | 65111364049 | $4.41 | Shop at ECS Tuning | |||||
| 06 | Fuse | T2,0 | 1 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse | 5A | 1 | 65111366117 | $1.55 | Shop at ECS Tuning | ||||
| 08 | Wiring front | MONO | 2 | 65111367856 | $9.68 | ENDED | Shop at ECS Tuning | |||
| 10 | Wiring rear | STEREO | 1 | 09/1982 | 65121373267 | ENDED | Shop at ECS Tuning | |||
| 10 | Wiring rear | STEREO | 1 | 09/1982 | 65121373267 | ENDED | Shop at ECS Tuning | |||
| 11 | Nut | 1 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wiring front | STEREO | 1 | 09/1982 | 65111371475 | ENDED | Shop at ECS Tuning | |||
| 13 | Wiring front | STEREO | 1 | 09/1982 | 65111371475 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA RADIO BAVARIA C RADIO BAVARIA C EURO RADIO BAVARIA CR DIGITAL RADIO BAVARIA EUROPA DIGITAL |
||||||||||
| 14 | Adapter lead | 1 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC |
||||||||||
| 14 | Adapter lead | 1 | 09/1984 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | |||
| 14 | Adapter lead | 1 | 09/1984 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 15 | Adapter lead | 1 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC RADIO MEXICO ELECTRONIC RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 16 | Wiring audio volume control | 1 | 09/1984 | 61121373263 | $16.63 | ENDED | Shop at ECS Tuning | |||
| 16 | Wiring audio volume control | 1 | 09/1984 | 61121373263 | $16.63 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
