Single parts f rear window antenna for BMW 3 Series E36 325i (1995)

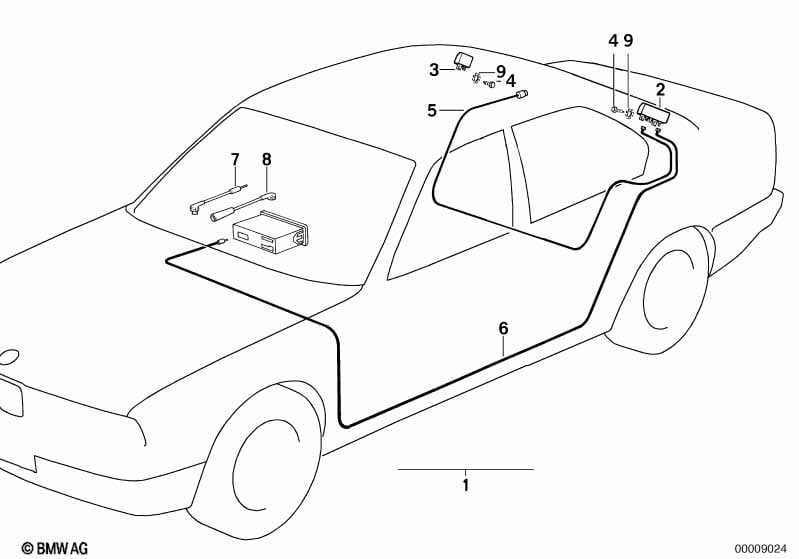

This Single parts f rear window antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Single parts f rear window antenna
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Amplifier 1 65241387751 $89.47 Shop at ECS Tuning
03 Trap circuit 1 65241387803 $32.39 Shop at ECS Tuning
04 Hex head screw L=15 MM 3 65221370813 $0.38 Shop at ECS Tuning
06 Antenna cable 5000MM 1 65248350099 $25.42 Shop at ECS Tuning
07 Antenna adapter tubing 1 65121394202 $14.22 Shop at ECS Tuning
08 Antenna adapter tubing 1 65121388950 $14.22 Shop at ECS Tuning
09 Tooth washer A6,4 3 07119936133 $0.38 Shop at ECS Tuning

See Also

RADIO RADIO
EARTH STRAP FOR ENGINE HOOD EARTH STRAP FOR ENGINE HOOD
RADIO ADAPTER WIRING RADIO ADAPTER WIRING
SINGLE COMPONENTS CD-6 CHANGER SINGLE COMPONENTS CD-6 CHANGER
SINGLE COMPONENTS F TOP HIFI SYSTEM SINGLE COMPONENTS F TOP HIFI SYSTEM
SINGLE COMPONENTS STEREO SYSTEM SINGLE COMPONENTS STEREO SYSTEM
SINGLE PARTS F ANTENNA-DIVERSITY SINGLE PARTS F ANTENNA-DIVERSITY
CD-BOX/CASSETTE BOX IN GLOVE BOX CD-BOX/CASSETTE BOX IN GLOVE BOX
PARTS F CENTER CONSOLE CASSETTE BOX PARTS F CENTER CONSOLE CASSETTE BOX
ALARM SYSTEMS ALARM SYSTEMS
ELECTRIC PARTS AIRBAG ELECTRIC PARTS AIRBAG

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 325i Single parts f rear window antenna?
This technical diagram illustrates the Single parts f rear window antenna within the Audio, Navigation, Electronic Systems group for the 3 Series E36 325i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Amplifier (Part #65241387751).
Which models use the hardware listed in this Single parts f rear window antenna?
The hardware and components featured in the Single parts f rear window antenna are specific to the 3 Series E36 325i produced during 1995. These technical specifications ensure that parts like the Amplifier (65241387751) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Single parts f rear window antenna assembly?
Each item in the Single parts f rear window antenna corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Amplifier by locating its position on the schematic, which then links to the official BMW part number 65241387751 for the Audio, Navigation, Electronic Systems section.
