Radio-installation parts for BMW 7 Series E23 730 (1979)

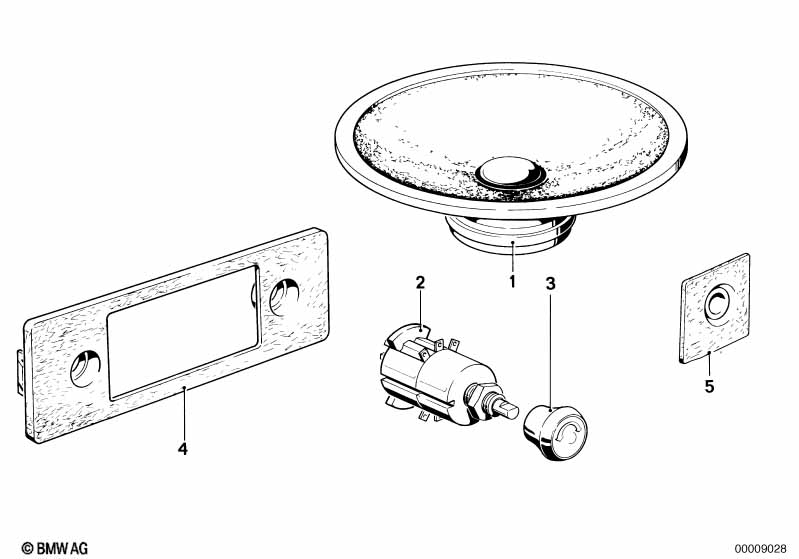

This Radio-installation parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loudspeaker | 4-OHM/4/6W | 1 | 65121357435 | ENDED | Shop at ECS Tuning | ||||
| 01 | Loudspeaker | 4-OHM/8/20W | 1 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 02 | Fader control with flat-type connector | 6 POLIG | 1 | 65111366390 | $30.95 | Shop at ECS Tuning | ||||
| 02 | Fading control | 1 | 65113907754 | Shop at ECS Tuning | ||||||
| 03 | Knob temperature | 1 | 65111367858 | $1.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 05 | Bracket fading control | 1 | 65111362051 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
