Single components stereo system for BMW 5 Series E12 525 (1981)

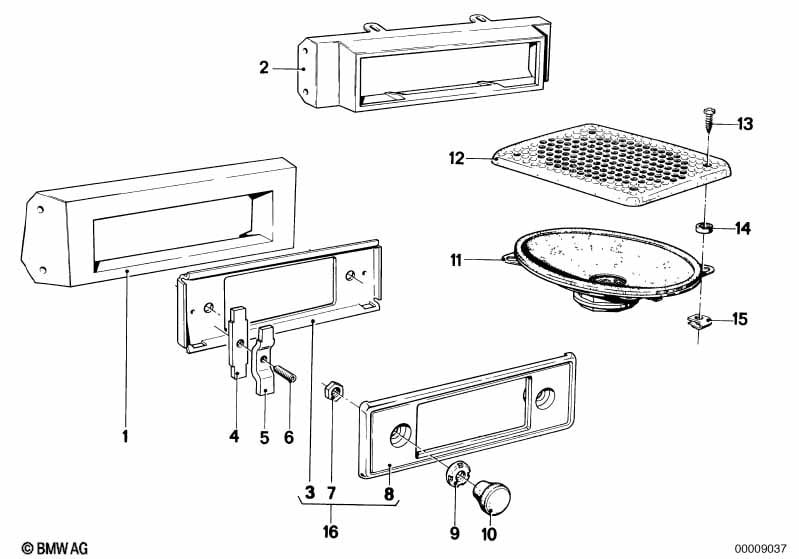

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 02/1977 | 65111363723 | $4.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Cover | 1 | 02/1977 | 65111363575 | $5.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Carrier | 1 | 02/1977 | 65111363445 | $4.61 | Shop at ECS Tuning | ||||
| 04 | Holder | 2 | 02/1977 | 65111363448 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Holder | 2 | 02/1977 | 65111363707 | $10.71 | Shop at ECS Tuning | ||||
| 06 | Grub screw | M6X12 | 2 | 02/1977 | 07119905947 | $0.35 | ENDED | Shop at ECS Tuning | ||
| 07 | Nut | 2 | 02/1977 | 65111363446 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | 1 | 02/1977 | 65111367881 | $4.63 | Shop at ECS Tuning | ||||
| 09 | Nut | 2 | 02/1977 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | |||
| 10 | Rotary knob | 2 | 02/1977 | 65111369117 | $1.89 | ENDED | Shop at ECS Tuning | |||
| 11 | Loudspeaker | 4-OHM/8/20W | 4 | 02/1977 | 65121375109 | $25.86 | Shop at ECS Tuning | |||
| 12 | Cover Loudspeaker | ANTHRAZIT | 4 | 02/1977 | 65121367715 | $7.96 | Shop at ECS Tuning | |||
| 13 | Recessed oval head sheet-metal screw | ST4,2X16 | X | 02/1977 | 07119902497 | $0.13 | Shop at ECS Tuning | |||
| 14 | Shim | 5,5MM | 8 | 02/1977 | 65111374608 | $0.20 | ENDED | Shop at ECS Tuning | ||
| 15 | Body nut | ST4,2-4 | 8 | 02/1977 | 07129925708 | $0.11 | ENDED | Shop at ECS Tuning | ||
| 15 | Body nut | B4,2 | 8 | 02/1977 | 65111360120 | $0.23 | Shop at ECS Tuning | |||
| 16 | Radio installation-supplementary set | STEREO | 1 | 02/1977 | 65119055933 | $7.03 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
