Single components stereo system for BMW 3 Series E30 325e (1987)

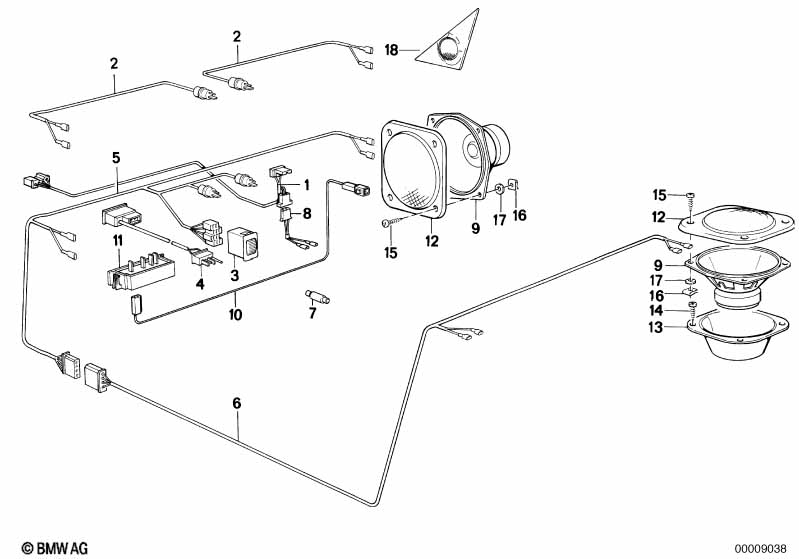

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set | 1 | 09/1989 | 65111370845 | $19.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiring front | MONO | 2 | 09/1989 | 65111367856 | $9.68 | ENDED | Shop at ECS Tuning | ||
| 03 | Fader control with flat-type connector | 1 | 09/1989 | 65121368769 | $68.44 | Shop at ECS Tuning | ||||
| 03 | Fader control with cylindrical connector | 1 | 09/1989 | 65121379048 | $39.55 | Shop at ECS Tuning | ||||
| 05 | Wiring front | STEREO | 1 | 09/1989 | 61121386440 | $62.78 | ENDED | Shop at ECS Tuning | ||
| 05 | Wiring 4-hanel front | STEREO | 1 | 09/1989 | 61121386554 | $87.62 | ENDED | Shop at ECS Tuning | ||
| 06 | Wiring rear | STEREO | 1 | 09/1989 | 61121375626 | $40.81 | ENDED | Shop at ECS Tuning | ||
| 07 | Fuse | T3,15 | 1 | 09/1989 | 07119976100 | $3.64 | Shop at ECS Tuning | |||
| 07 | Fuse | T2,0 | 1 | 09/1989 | 07119976101 | $0.77 | ENDED | Shop at ECS Tuning | ||
| 07 | Fuse | T2,5 | 1 | 09/1989 | 07119976102 | $3.15 | ENDED | Shop at ECS Tuning | ||
| 07 | Fuse | T4,0 | 1 | 09/1989 | 07119976103 | $1.58 | ENDED | Shop at ECS Tuning | ||
| 07 | Fuse | T10 | 1 | 09/1989 | 61131380468 | $1.88 | ENDED | Shop at ECS Tuning | ||
| 08 | Adapter lead | 1 | 09/1989 | 65111372723 | $9.93 | ENDED | Shop at ECS Tuning | |||
| 09 | Loudspeaker | 8 OHM/18/20W | X | 09/1989 | 65131381250 | $43.55 | ENDED | Shop at ECS Tuning | ||
| 09 | Loudspeaker | X | 09/1989 | 65131386541 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 10 | Wiring audio volume control | 1 | 09/1989 | 61121372721 | $12.57 | ENDED | Shop at ECS Tuning | |||
| 11 | Plug housing | 1 | 09/1989 | 62111372218 | $7.86 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover Loudspeaker | X | 09/1989 | 65131370803 | $11.43 | ENDED | Shop at ECS Tuning | |||
| 13 | Cup | 2 | 09/1989 | 51711884176 | $8.66 | ENDED | Shop at ECS Tuning | |||
| 14 | Fillister head self-tapping screw | ST4,2X13-Z2 | 8 | 09/1989 | 07119907939 | $0.11 | Shop at ECS Tuning | |||
| 16 | Body nut | ST4,2-1-ZNS3 | 4 | 09/1989 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 17 | Washer | X | 09/1989 | 65211369479 | ENDED | Shop at ECS Tuning | ||||
