Single components sound system for BMW 7 Series E23 733i (1982)

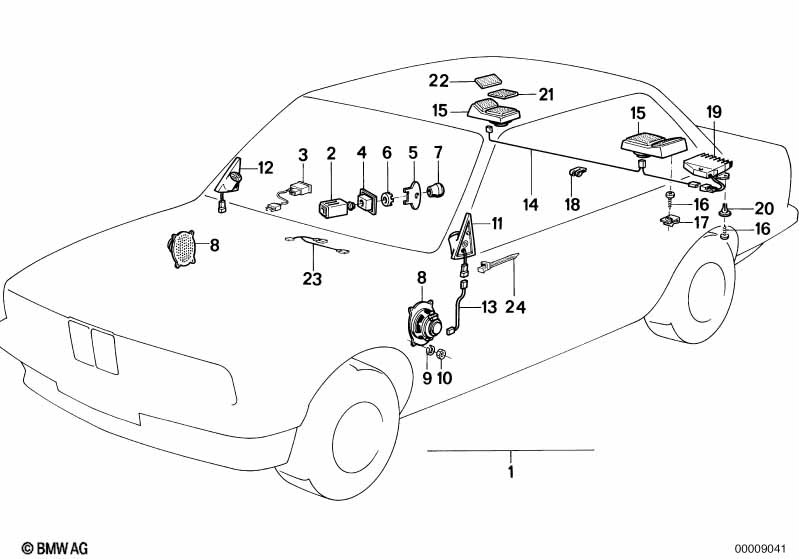

This Single components sound system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fading control | SOUND SYSTEM | 1 | 65141375981 | $47.99 | ENDED | Shop at ECS Tuning | |||
| NOT SUITABLE FOR RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 03 | Adapter lead | STEREO | 1 | 09/1986 | 82119416306 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 03 | Connection cable 4-channel | 1 | 09/1986 | 61121386161 | $59.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket fading control | 1 | 65111362051 | ENDED | Shop at ECS Tuning | |||||
| 05 | Socket wrench | 1 | 65111359402 | ENDED | Shop at ECS Tuning | |||||
| 06 | Nut | 1 | 65111362420 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | Knob temperature | 1 | 65111367858 | $1.48 | ENDED | Shop at ECS Tuning | ||||
| 08 | Loudspeaker | SOUND SYSTEM | 2 | 65131377615 | $72.95 | +core | Shop at ECS Tuning | |||
| 09 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 11 | Left corner moulding with tweeter | SOUND SYSTEM | 1 | 65131377777 | $42.14 | ENDED | Shop at ECS Tuning | |||
| 12 | Right corner moulding with tweeter | SOUND SYSTEM | 1 | 65131377778 | $42.14 | Shop at ECS Tuning | ||||
| 13 | Wiring door | SOUND SYSTEM | 2 | 61121373548 | $15.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Wiring set | SOUND SYSTEM | 1 | 65121377449 | $169.63 | ENDED | Shop at ECS Tuning | |||
| 15 | Loudspeaker | SCHWARZ | 2 | 65131381473 | $194.00 | ENDED | Shop at ECS Tuning | |||
| 15 | Loudspeaker | PACIFIC | 2 | 65131381474 | ENDED | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | NUTRIA | 2 | 65131381475 | ENDED | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | PERLBEIGE | 2 | 65131381476 | $187.12 | ENDED | Shop at ECS Tuning | |||
| 15 | Loudspeaker | PINIENGRUEN | 2 | 65131381477 | ENDED | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | LAMA | 2 | 65131381478 | ENDED | Shop at ECS Tuning | ||||
| 16 | Sheet metal screw | 4,2X16 | X | 07119904265 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST4,2X16-ABW | X | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST4,2-4 | 8 | 07129904144 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 19 | Amplifier | SOUND SYSTEM | 1 | 65121375983 | $242.17 | ENDED | Shop at ECS Tuning | |||
| 20 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 21 | Cover | SCHWARZ | 2 | 65131381467 | $36.55 | ENDED | Shop at ECS Tuning | |||
| 21 | Cover | PACIFIC | 2 | 65131381468 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | NUTRIA | 2 | 65131381469 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | PERLBEIGE | 2 | 65131381470 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | PINIENGRUEN | 2 | 65131381471 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | LAMA | 2 | 65131381472 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cover | SCHWARZ | 2 | 65131381461 | $22.29 | ENDED | Shop at ECS Tuning | |||
| 22 | Cover | PACIFIC | 2 | 65131381462 | $29.57 | ENDED | Shop at ECS Tuning | |||
| 22 | Cover | NUTRIA | 2 | 65131381463 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cover | PERLBEIGE | 2 | 65131381464 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cover | PINIENGRUEN | 2 | 65131381465 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cover | LAMA | 2 | 65131381466 | ENDED | Shop at ECS Tuning | ||||
| 24 | Cable tie | L=292MM/B=4,8MM | 4 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
