Radio Bavaria Mono Digital for BMW 7 Series E23 735i (1982)

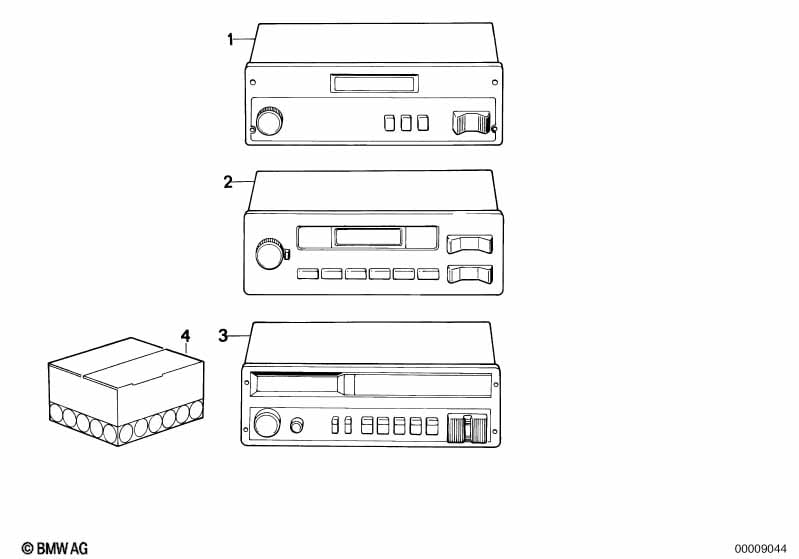

This Radio Bavaria Mono Digital technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. radio BAVARIA MONO | 1 | 65111379234 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria Mono Digital II | 1 | 65119061281 | ENDED | Shop at ECS Tuning | |||||
| 02 | Exch. radio BAVARIA MONO DIGITAL II | 1 | 65111388398 | ENDED | Shop at ECS Tuning | |||||
| 02 | Radio Bavaria Mono Digital II | 1 | 65119061281 | ENDED | Shop at ECS Tuning | |||||
| 03 | Exch. radio BAVARIA MONO DIGITAL II | 1 | 65111388398 | ENDED | Shop at ECS Tuning | |||||
| 03 | Radio Bavaria Mono Digital II | 1 | 65119061281 | ENDED | Shop at ECS Tuning | |||||
| 04 | Radio installing kit | MONO | 1 | 65119056555 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Radio Bavaria Mono Digital?
- This technical diagram illustrates the Radio Bavaria Mono Digital within the Audio, Navigation, Electronic Systems group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Exch. radio BAVARIA MONO (Part #65111379234).
- Which models use the hardware listed in this Radio Bavaria Mono Digital?
- The hardware and components featured in the Radio Bavaria Mono Digital are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Exch. radio BAVARIA MONO (65111379234) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio Bavaria Mono Digital assembly?
- Each item in the Radio Bavaria Mono Digital corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Exch. radio BAVARIA MONO by locating its position on the schematic, which then links to the official BMW part number 65111379234 for the Audio, Navigation, Electronic Systems section.
