Radio-anti-intererence for BMW 5 Series E28 520i (1982)

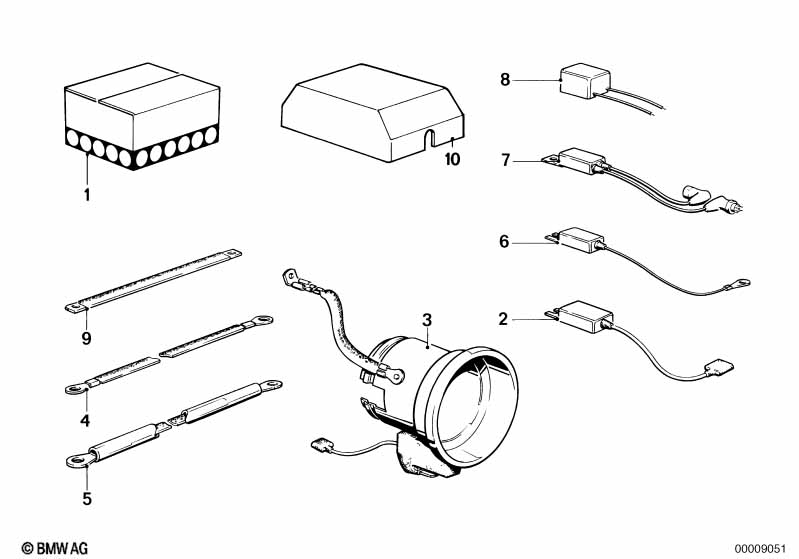

This Radio-anti-intererence technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Anti-interference kit | 1 | 65311277161 | ENDED | Shop at ECS Tuning | |||||
| 02 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 04 | Earth strap for engine hood | 1 | 65311277155 | $5.90 | Shop at ECS Tuning | |||||
| 05 | Earth strap for rocker cover | L=170 | 1 | 65311364692 | $5.90 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 05 | Earth strap, trunk lid | 1 | 65311361940 | ENDED | Shop at ECS Tuning | |||||
| SPECIAL ANTI-INTERFERENCE | ||||||||||
| 06 | Suppression capacitor | 0,47MF | 1 | 65311357878 | $14.99 | Shop at ECS Tuning | ||||
| 07 | Suppression capacitor | 2,2UF | 1 | 65319055972 | ENDED | Shop at ECS Tuning | ||||
| 08 | Suppression filter | 1 | 65319055974 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 09 | Earth strap | 20X400MM | 1 | 65319055973 | $18.61 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 10 | Anti-interference kit | 1 | 65311371171 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
