Radio-anti-intererence for BMW 3 Series E30 325e (1987)

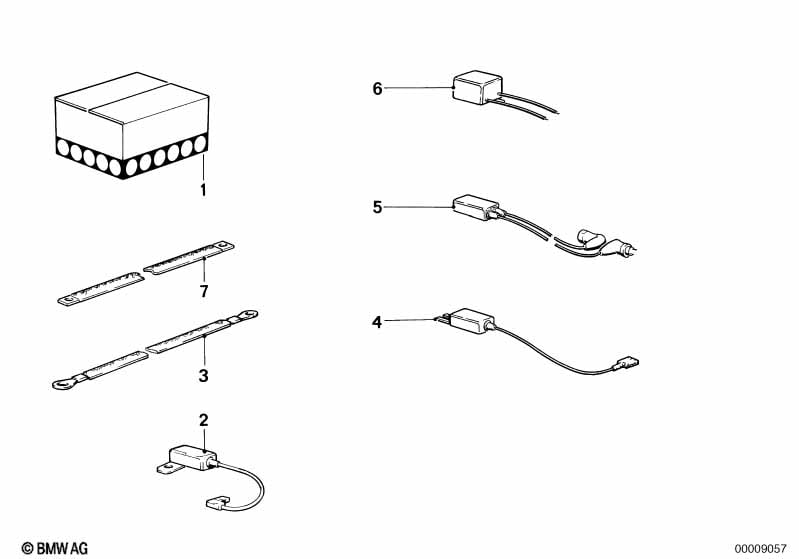

This Radio-anti-intererence technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Anti-interference kit | 1 | 65311286071 | ENDED | Shop at ECS Tuning | |||||
| 02 | Suppression capacitor alternator | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 03 | Earth strap for engine hood | 1 | 65311286068 | $4.11 | Shop at ECS Tuning | |||||
| SPECIAL ANTI-INTERFERENCE | ||||||||||
| 04 | Suppression capacitor | 0,47MF | 1 | 65311357878 | $14.99 | Shop at ECS Tuning | ||||
| 06 | Suppression filter | 1 | 65319055974 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 07 | Earth strap | 20X400MM | 1 | 65319055973 | $18.61 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
