Single components stereo system for BMW 8 Series E31 850Ci (1991)

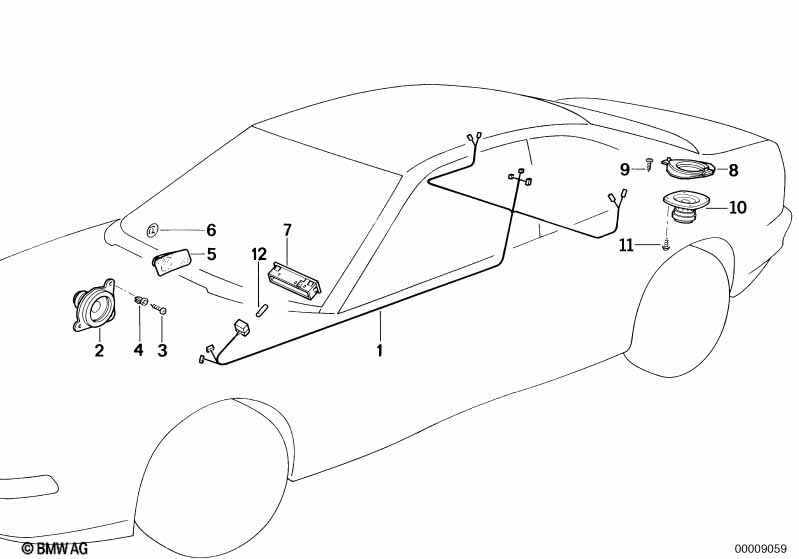

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness Stereo | 1 | 61121392706 | $87.05 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker left Loudspeaker left | 4-OHM/15/25W | 1 | 65131392343 | Shop at ECS Tuning | |||||
| 02 | Loudspeaker right Loudspeaker right | 4-OHM/15/25W | 1 | 65131392344 | Shop at ECS Tuning | |||||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 02 | Loudspeaker left Loudspeaker left | 1 | 65138354275 | $79.73 | Shop at ECS Tuning | |||||
| 02 | Loudspeaker right Loudspeaker right | 1 | 65138354276 | $79.73 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X19-C-Z2 | 6 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Loudspeaker left Loudspeaker left | SCHWARZ | 1 | 65138354041 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker right Loudspeaker right | SCHWARZ | 1 | 65138354042 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker left Loudspeaker left | SILBERGRAU | 1 | 65138354045 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker right Loudspeaker right | SILBERGRAU | 1 | 65138354046 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker left Loudspeaker left | ULTRAMARIN | 1 | 65138354049 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker right Loudspeaker right | ULTRAMARIN | 1 | 65138354050 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker left Loudspeaker left | PEGRAMENT | 1 | 65138354053 | $65.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Loudspeaker right Loudspeaker right | PERGAMENT | 1 | 65138354054 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker left Loudspeaker left | BRASIL | 1 | 65138354057 | ENDED | Shop at ECS Tuning | ||||
| 05 | Loudspeaker right Loudspeaker right | BRASIL | 1 | 65138354058 | ENDED | Shop at ECS Tuning | ||||
| 06 | Body nut | 5MM | 6 | 51418108117 | $0.23 | ENDED | Shop at ECS Tuning | |||
| 07 | Frame | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 07 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 08 | Loudspeaker | 4-OHM/15/25W | 2 | 65131392312 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST3,5X9,5-Z1 | 2 | 07119907913 | $0.13 | Shop at ECS Tuning | ||||
| 10 | Loudspeaker | 2 | 65131386541 | Shop at ECS Tuning | ||||||
| 11 | Sheet metal screw | 3 X 8 | 8 | 61131372470 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 12 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
