Supplementary parts radio Mexico CD for BMW 7 Series E32 730i (1990)

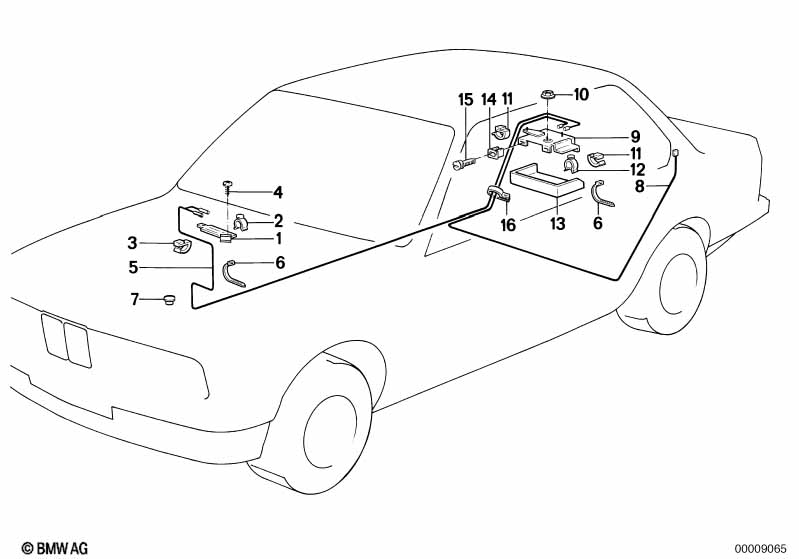

This Supplementary parts radio Mexico CD technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.

Supplementary parts radio Mexico CD
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO HIFI SYSTEM
01 Holder 1 65251379768 $21.32 ENDED Shop at ECS Tuning
02 Clamp D=24,5MM 4 61131379580 $0.63 Shop at ECS Tuning
03 Cable holder 4 61131378529 $0.68 Shop at ECS Tuning
04 Fillister head self-tapping screw ST3,9X9,5-F 2 07119907910 $0.38 Shop at ECS Tuning
05 Wiring set 1 65121388985 ENDED Shop at ECS Tuning
06 Cable tie L=292MM/B=4,8MM 5 61131377134 $0.77 Shop at ECS Tuning
07 Push-button 2 61131373669 $0.93 Shop at ECS Tuning
08 Antenna cable 5000MM 1 65248350099 $25.42 Shop at ECS Tuning
09 Holder 1 65121379784 ENDED Shop at ECS Tuning
10 Hex nut with plate M6 3 07147134319 $1.05 Shop at ECS Tuning
11 Cable holder 2 61131378529 $0.68 Shop at ECS Tuning
12 Clamp D=24,5MM 2 61131379580 $0.63 Shop at ECS Tuning
13 Cover 1 65121379955 ENDED Shop at ECS Tuning
14 Lock insert 2 51711916199 $0.32 Shop at ECS Tuning
15 Push-button 2 51471945266 $0.55 Shop at ECS Tuning
16 Holder 1 65121382215 $1.43 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
