Single components hifi system for BMW 5 Series E34 524td (1991)

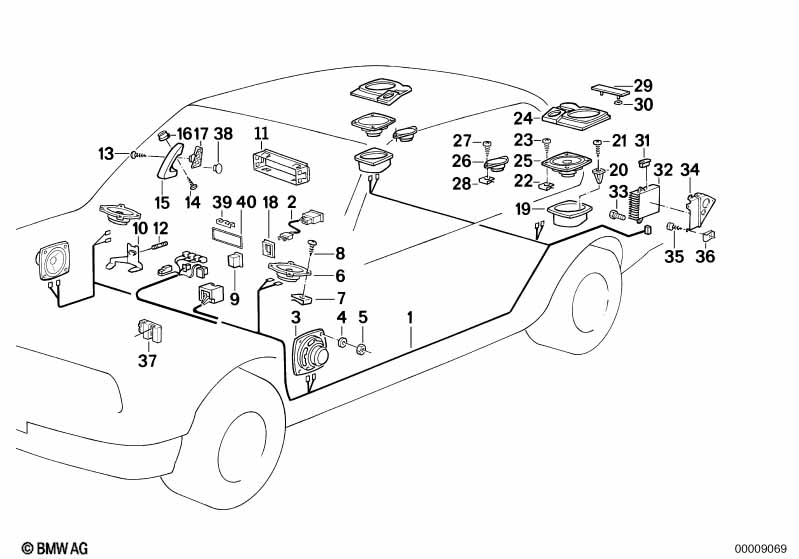

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 2-channel loud speaker wiring harness | HIFI SYSTEM | 1 | 61121388373 | $291.93 | ENDED | Shop at ECS Tuning | |||
| 01 | Audio wiring harness HiFi | 17-POLIG | 1 | 09/1990 | 03/1993 | 61118350461 | $291.93 | ENDED | Shop at ECS Tuning | |
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL |
||||||||||
| 01 | Audio wiring harness HiFi | 17-POLIG | 1 | 09/1990 | 03/1993 | 61118350463 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO RADIO MEXICO CD |
||||||||||
| 01 | 4-channel loud speaker wiring harness | 1 | 61121391564 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 03 | Loudspeaker | 2 | 65138370935 | $43.06 | Shop at ECS Tuning | |||||
| 04 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 06 | Loudspeaker | HIFI-SYSTEM | 2 | 65138375082 | $57.92 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST4,2X13 | 4 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Fader control with cylindrical connector | HIFI/SOUND SYST | 1 | 65121379325 | $44.65 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 65111384208 | $3.52 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 10 | Holder | 1 | 65111384108 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 11 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 12 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Fillister head self-tapping screw | ST3,9X13 | 3 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| 15 | Covering right | INDIGO | 1 | 03/1993 | 65131384808 | $14.34 | ENDED | Shop at ECS Tuning | ||
| 15 | Covering left | HAVANNA | 1 | 03/1993 | 65131384809 | $25.11 | ENDED | Shop at ECS Tuning | ||
| 15 | Covering right | HAVANNA | 1 | 03/1993 | 65131384810 | $14.34 | ENDED | Shop at ECS Tuning | ||
| 15 | Covering left | SCHWARZ | 1 | 65131384805 | $14.34 | ENDED | Shop at ECS Tuning | |||
| 15 | Covering right | SCHWARZ | 1 | 65131384806 | $14.34 | Shop at ECS Tuning | ||||
| 16 | Loudspeaker mounting clip | HIFI SYSTEM | 2 | 51321379809 | $0.79 | Shop at ECS Tuning | ||||
| 17 | Loudspeaker left Loudspeaker left | SCHWARZ | 1 | 03/1993 | 65131384797 | $69.19 | ENDED | Shop at ECS Tuning | ||
| 17 | Loudspeaker right Loudspeaker right | SCHWARZ | 1 | 03/1993 | 65131384798 | $69.19 | ENDED | Shop at ECS Tuning | ||
| 17 | Loudspeaker left Loudspeaker left | INDIGO | 1 | 03/1993 | 65131384799 | $64.25 | ENDED | Shop at ECS Tuning | ||
| 17 | Loudspeaker right Loudspeaker right | INDIGO | 1 | 03/1993 | 65131384800 | $65.29 | ENDED | Shop at ECS Tuning | ||
| 17 | Loudspeaker left Loudspeaker left | HAVANNA | 1 | 03/1993 | 65131384801 | $64.25 | ENDED | Shop at ECS Tuning | ||
| 17 | Loudspeaker right Loudspeaker right | HAVANNA | 1 | 03/1993 | 65131384802 | $65.29 | ENDED | Shop at ECS Tuning | ||
| 18 | Frame fading control | 1 | 65121384407 | $1.12 | Shop at ECS Tuning | |||||
| 19 | Cup | 2 | 65131374499 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 20 | Expanding nut | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
| 21 | Fillister head self-tapping screw | ST4,2X13-Z1 | 6 | 07119907943 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 21 | Sheet metal screw | 4,2X13 | 6 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Body nut | ST4,2-3-ZNS3 | 8 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 23 | Fillister head self-tapping screw | ST4,2X13-Z2 | 8 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 24 | Left rear loudspeaker cover | 1 | 65131378775 | $4.65 | Shop at ECS Tuning | |||||
| 24 | Rear right loudspeaker cover | 1 | 65131378776 | $4.65 | Shop at ECS Tuning | |||||
| 25 | Loudspeaker | 4OHM 20/40 WATT | 1 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 26 | Loudspeaker | HIFI SYSTEM | 2 | 03/1993 | 65131377772 | $27.73 | ENDED | Shop at ECS Tuning | ||
| 27 | Fillister head self-tapping screw | ST3,5X13 | 4 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 28 | Body nut | ST3.5-2 | 4 | 02/1992 | 07129925714 | $0.20 | Shop at ECS Tuning | |||
| 29 | Badge "BMW hifi system" | 1 | 65131382261 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| 30 | Spring nut | 3,2 | 2 | 64111364464 | $0.23 | Shop at ECS Tuning | ||||
| 31 | Equalizer Module for Hifi System | 1 | 65121391313 | $108.56 | Shop at ECS Tuning | |||||
| 32 | Amplifier | 1 | 03/1993 | 65128350407 | +core | Shop at ECS Tuning | ||||
| 33 | Hex bolt | M6X12 | 3 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 34 | Holder Hifi system amplifier | 1 | 65121384794 | $11.48 | ENDED | Shop at ECS Tuning | ||||
| 35 | Fillister head self-tapping screw | ST4,8X13-Z1 | 4 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 36 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 37 | Radiocontact | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 38 | Covering cap | INDIGO DKL | 2 | 03/1993 | 65131389610 | $0.22 | ENDED | Shop at ECS Tuning | ||
| 38 | Covering cap | HAVANNA | 2 | 03/1993 | 65131389611 | $0.28 | ENDED | Shop at ECS Tuning | ||
| 38 | Covering cap | SCHWARZ | 2 | 65131389609 | $0.52 | Shop at ECS Tuning | ||||
| 39 | Clamp | BECKER | 2 | 65121385469 | $0.22 | Shop at ECS Tuning | ||||
| 40 | Frame | BECKER | 1 | 65121389614 | $2.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
