Radio accessories for BMW 7 Series E32 730iL (1994)

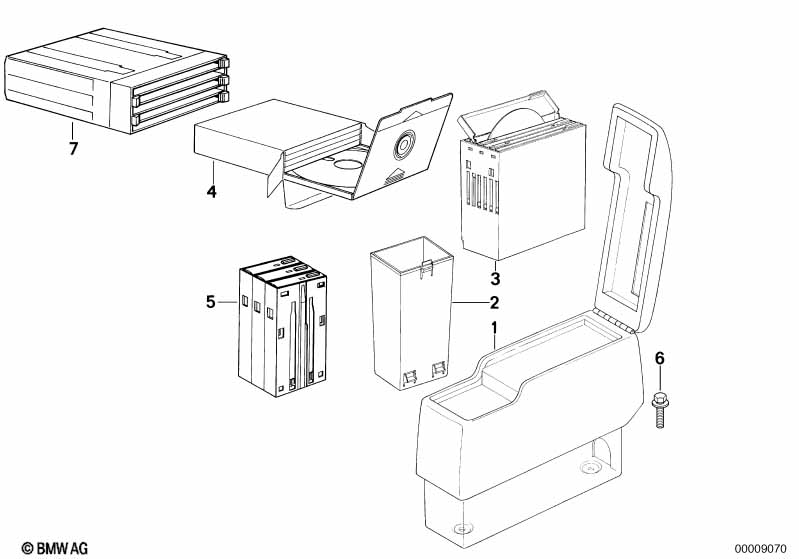

This Radio accessories technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing for center console | SCHWARZ | 1 | 51168105346 | ENDED | Shop at ECS Tuning | ||||
| 01 | Housing for center console | SILBERGRAU | 1 | 09/1990 | 51168141428 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU | 1 | 09/1990 | 51168141428 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 09/1990 | 51168141429 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 09/1990 | 51168141429 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 09/1990 | 51168141430 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 09/1990 | 51168141430 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 09/1990 | 51168141431 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 09/1990 | 51168141431 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141432 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141432 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO LEATHER VERSI.WALKNAPPA | ||||||||||
| 01 | Housing for center console | SCHWARZ | 1 | 51168105313 | ENDED | Shop at ECS Tuning | ||||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 09/1990 | 51168141448 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 09/1990 | 51168141448 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 09/1990 | 51168141449 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 09/1990 | 51168141449 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 09/1990 | 51168141450 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 09/1990 | 51168141450 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT HELL | 1 | 09/1990 | 51168141451 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT HELL | 1 | 09/1990 | 51168141451 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141452 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141452 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Housing for center console | ANTHRAZIT`91 | 1 | 09/1990 | 51168141453 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ANTHRAZIT`91 | 1 | 09/1990 | 51168141453 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141454 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 09/1990 | 51168141454 | ENDED | Shop at ECS Tuning | |||
| 02 | Container | 1 | 51168105344 | ENDED | Shop at ECS Tuning | |||||
| 03 | CD box | 1 | 65141379400 | $116.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | CD-cartridge 5 pieces | BAV.ELECTR.CD | 1 | 65129061583 | $48.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Profound cassette box | 3 | 65141390339 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torx-bolt for plastic material | 4X14 ZNT | 2 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| 07 | CD-box for cartridge | 1 | 65141390715 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
