Single components stereo system for BMW 3 Series E30 M3 (1990)

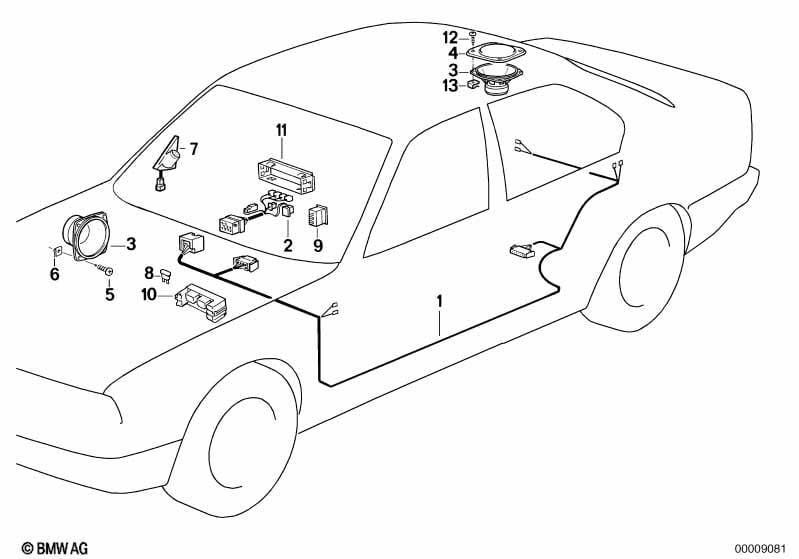

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set | STEREO | 1 | 09/1989 | 61121394210 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 02 | Adapter tubing f stereo system | 4-KANAL | 1 | 09/1989 | 65128350189 | $56.15 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO RADIO BAVARIA C RADIO BAVARIA C REVERSE RADIO MEXICO ELECTRONIC CR SAFETY |
||||||||||
| 02 | Adapter tubing f stereo system | 2-KANAL | 1 | 09/1989 | 65128350188 | $56.15 | ENDED | Shop at ECS Tuning | ||
| 03 | Loudspeaker | 4 | 09/1989 | 65131386541 | Shop at ECS Tuning | |||||
| 04 | Cover Loudspeaker | 4 | 09/1989 | 65131370803 | $11.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST4,2X16-Z2 | 6 | 09/1989 | 07119907948 | $0.18 | Shop at ECS Tuning | |||
| 06 | Expanding nut | ST 4.8 WEISS | 6 | 09/1989 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 08 | Fuse light brown | 5A | 1 | 09/1989 | 61131372523 | Shop at ECS Tuning | ||||
| 08 | Fuse | 5A | 1 | 09/1989 | 61131386626 | $0.75 | ENDED | Shop at ECS Tuning | ||
| 09 | Fader control with cylindrical connector | 1 | 09/1989 | 65121379048 | $39.55 | Shop at ECS Tuning | ||||
| 10 | Plug housing | 1 | 09/1989 | 62111372218 | $7.86 | ENDED | Shop at ECS Tuning | |||
| 11 | Frame | 1 | 09/1989 | 65121375737 | $13.10 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST4,2X25 | 8 | 09/1989 | 07119907796 | $0.18 | Shop at ECS Tuning | |||
| 13 | Body nut | ST4,2-4 | 8 | 09/1989 | 07129904144 | $0.09 | Shop at ECS Tuning | |||
