Single components hifi system for BMW 7 Series E32 730i (1988)

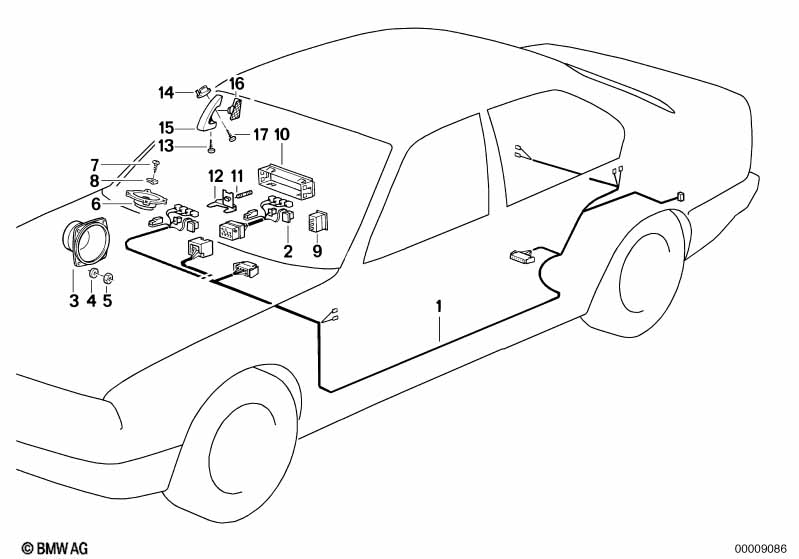

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 2-channel loud speaker wiring harness | HIFI SYSTEM | 1 | 09/1987 | 09/1990 | 61121388373 | $291.93 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| 01 | Audio wiring harness HiFi | 17-POLIG | 1 | 09/1987 | 09/1990 | 61128350726 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Adapter lead | 1 | 09/1987 | 09/1990 | 61128350467 | $19.08 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO RADIO MEXICO CD |
||||||||||
| 01 | Connection cable 2-channel | HIFI/CD-ANLAGE | 1 | 09/1987 | 01/1989 | 61121388375 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Australia ONLY APPLIES TO RADIO MEXICO CD |
L810A=Yes |
|||||||||
| 01 | Connection cable 2-channel | HIFI/CD-ANLAGE | 1 | 09/1987 | 09/1989 | 61121388375 | ENDED | Shop at ECS Tuning | ||
| 03 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 03 | Loudspeaker | 2 | 65138370935 | $43.06 | Shop at ECS Tuning | |||||
| 04 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,2X13 | 4 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Fader control with cylindrical connector | HIFI/SOUND SYST | 1 | 65121379325 | $44.65 | Shop at ECS Tuning | ||||
| 10 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 12 | Radio bracket | 1 | 65111374474 | $2.45 | ENDED | Shop at ECS Tuning | ||||
| 12 | Radio bracket | 1 | 65111379385 | ENDED | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Loudspeaker mounting clip | HIFI SYSTEM | 2 | 51321379809 | $0.79 | Shop at ECS Tuning | ||||
| 15 | Left loudspeaker cover | INDIGO DUNKEL | 1 | 65131379535 | $17.23 | ENDED | Shop at ECS Tuning | |||
| 15 | Right loudspeaker cover | INDIGO DUNKEL | 1 | 65131379536 | $14.73 | ENDED | Shop at ECS Tuning | |||
| 15 | Left loudspeaker cover | HAVANNA | 1 | 65131379537 | $17.23 | ENDED | Shop at ECS Tuning | |||
| 15 | Right loudspeaker cover | HAVANNA | 1 | 65131379538 | $14.73 | ENDED | Shop at ECS Tuning | |||
| 15 | Right loudspeaker cover | SCHWARZ | 1 | 65138356278 | $16.73 | Shop at ECS Tuning | ||||
| 15 | Left loudspeaker cover | SCHWARZ | 1 | 65138356279 | $16.73 | ENDED | Shop at ECS Tuning | |||
| 16 | Left loudspeaker tweeter | SCHWARZ | 1 | 09/1992 | 65131379891 | $69.19 | ENDED | Shop at ECS Tuning | ||
| 16 | Right loudspeaker tweeter | SCHWARZ | 1 | 09/1992 | 65131379892 | $65.47 | Shop at ECS Tuning | |||
| 16 | Left loudspeaker tweeter | INDIGO DUNKEL | 1 | 09/1992 | 65131379893 | $66.17 | ENDED | Shop at ECS Tuning | ||
| 16 | Right loudspeaker tweeter | INDIGO DUNKEL | 1 | 09/1992 | 65131379894 | $66.17 | ENDED | Shop at ECS Tuning | ||
| 16 | Left loudspeaker tweeter | HAVANNA | 1 | 09/1992 | 65131379895 | $65.29 | ENDED, +core | Shop at ECS Tuning | ||
| 16 | Right loudspeaker tweeter | HAVANNA | 1 | 09/1992 | 65131379896 | $66.17 | ENDED, +core | Shop at ECS Tuning | ||
| 17 | Fillister head self-tapping screw | ST3,9X13 | 1 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
