Single components hifi system for BMW 7 Series E32 730i (1988)

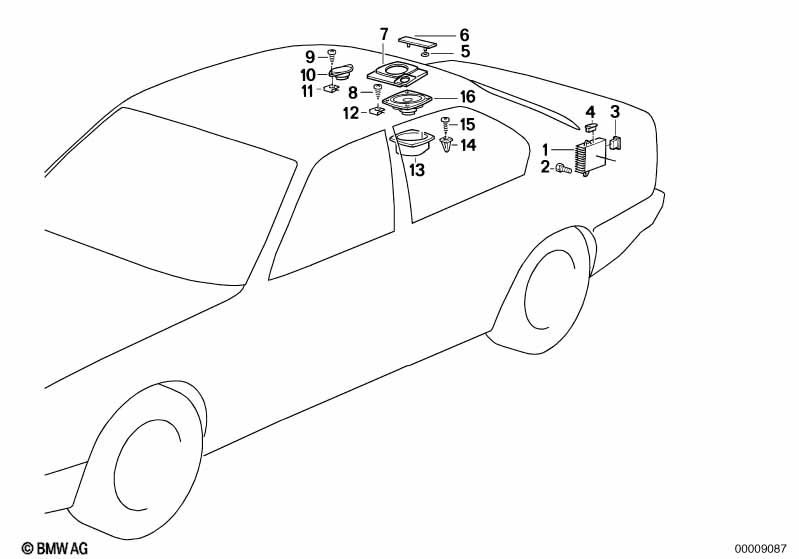

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amplifier | 1 | 09/1992 | 65128350407 | +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X12 | 3 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 03 | Fuse red | 10A | 1 | 61131372525 | Shop at ECS Tuning | |||||
| 04 | Equalizer Module for Hifi System | 1 | 65121391313 | $108.56 | Shop at ECS Tuning | |||||
| 05 | Spring nut | 3,2 | 2 | 64111364464 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Badge "BMW hifi system" | 1 | 65131382261 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Left rear loudspeaker cover | 1 | 65131378775 | $4.65 | Shop at ECS Tuning | |||||
| 07 | Rear right loudspeaker cover | 1 | 65131378776 | $4.65 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST4,2X13-Z2 | 8 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | 3,5X9,5 | 4 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 10 | Loudspeaker | HIFI SYSTEM | 2 | 09/1992 | 65131377772 | $27.73 | ENDED | Shop at ECS Tuning | ||
| 11 | Body nut | ST3.5-2 | 4 | 07129925714 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,2-3-ZNS3 | 8 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Cup | 2 | 65131374499 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 14 | Expanding nut | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapping screw | ST4,2X13-Z1 | 6 | 07119907943 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 15 | Sheet metal screw | 4,2X13 | 6 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
