Single components hifi system for BMW 8 Series E31 850Ci (1994)

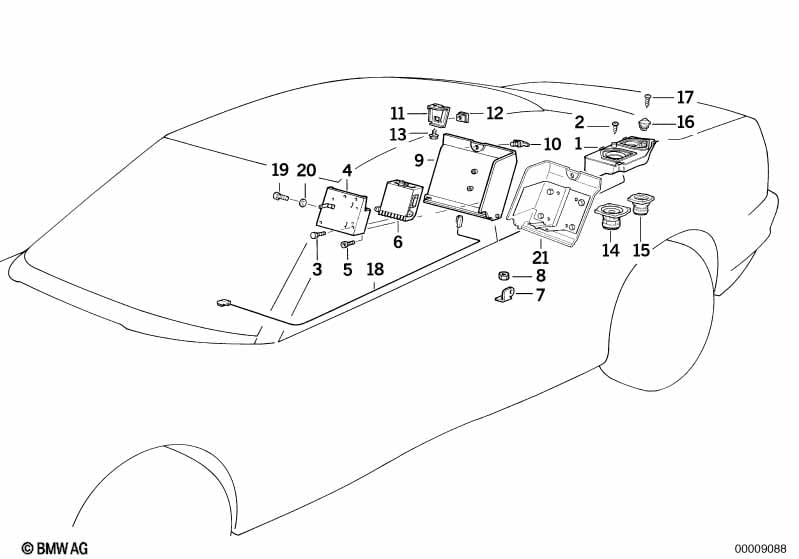

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loudspeaker left Loudspeaker left | HIFI-SYSTEM | 1 | 09/1993 | 65138360951 | $201.87 | ENDED | Shop at ECS Tuning | ||
| 01 | Loudspeaker right Loudspeaker right | HIFI-SYSTEM | 1 | 09/1993 | 65138360952 | $201.87 | ENDED | Shop at ECS Tuning | ||
| 02 | Screw for thermoplastic plastics | 2 | 51121964177 | $0.41 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X12 | 4 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 04 | Holder Hifi system amplifier | 1 | 65121392205 | $21.43 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M6X12 | 4 | 07119920069 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Anti-interfer.(telephone) hifi amplifier | 1 | 09/1993 | 65128362438 | $447.48 | ENDED | Shop at ECS Tuning | |||
| 07 | Bracket left | 2 | 51478108407 | $5.68 | Shop at ECS Tuning | |||||
| 07 | Bracket right | 2 | 51478108408 | $5.68 | Shop at ECS Tuning | |||||
| 08 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 51478108404 | $124.39 | Shop at ECS Tuning | |||||
| 10 | Screw plug | 2 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 11 | Catch | 2 | 51168118088 | $13.08 | ENDED | Shop at ECS Tuning | ||||
| 12 | Threaded plug | 2 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 13 | Hex head screw | ST6,3X13-C | 2 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 14 | Loudspeaker | 2 | 65131392381 | $77.40 | ENDED | Shop at ECS Tuning | ||||
| 15 | Loudspeaker | 2 | 65131382957 | $64.25 | Shop at ECS Tuning | |||||
| 16 | Loudspeaker | HIFI SYSTEM | 2 | 09/1993 | 65138375085 | $57.92 | Shop at ECS Tuning | |||
| 17 | Sheet metal screw | 3 X 8 | X | 61131372470 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 18 | Connection cable C professional / RDS | 1 | 65121392750 | $94.86 | Shop at ECS Tuning | |||||
| 18 | Connection cable bavaria electronic CD | 1 | 65128354078 | $56.36 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 20 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 20 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Cover | 1 | 51478108401 | $40.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
