Antenna accessories for BMW 3 Series E21 320 (1977)

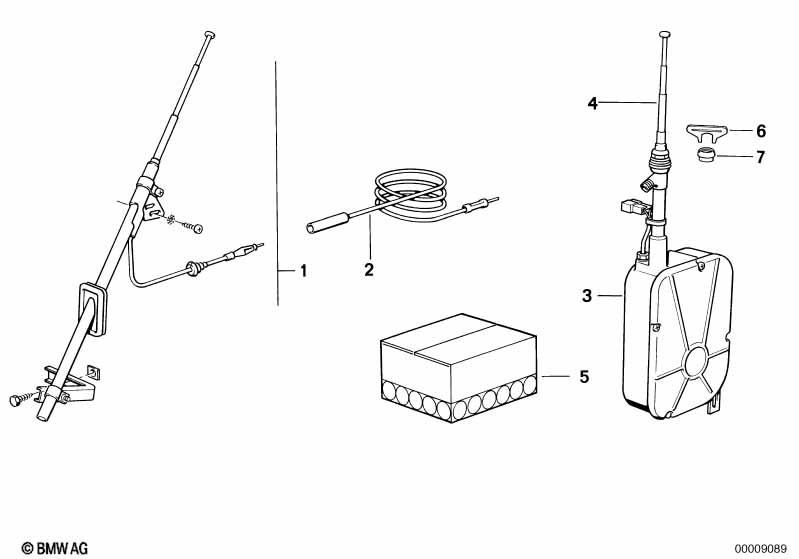

This Antenna accessories technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set disappearing antenna | 1 | 65211371264 | $66.96 | ENDED | Shop at ECS Tuning | ||||
| 02 | Antenna cable | 1 | 65111362910 | ENDED | Shop at ECS Tuning | |||||
| 03 | Automatic antenna screwed rear | SCHWARZ/CHROM | 1 | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 04 | Telescope | 1 | 65221369189 | $44.53 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 04 | Telescope | 1 | 65221375569 | $72.64 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Automatic antenna screwed rear | SCHWARZ/CHROM | X | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 05 | Installing set automatic antenna | 1 | 65221368156 | $58.70 | ENDED | Shop at ECS Tuning | ||||
| 06 | Antenna key | 1 | 65221369478 | $1.04 | ENDED | Shop at ECS Tuning | ||||
| 07 | Nut | CHROM | 1 | 65221369372 | $1.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Antenna accessories?
- This technical diagram illustrates the Antenna accessories within the Audio, Navigation, Electronic Systems group for the 3 Series E21 320 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Installing set disappearing antenna (Part #65211371264).
- Which models use the hardware listed in this Antenna accessories?
- The hardware and components featured in the Antenna accessories are specific to the 3 Series E21 320 produced during 1977. These technical specifications ensure that parts like the Installing set disappearing antenna (65211371264) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna accessories assembly?
- Each item in the Antenna accessories corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Installing set disappearing antenna by locating its position on the schematic, which then links to the official BMW part number 65211371264 for the Audio, Navigation, Electronic Systems section.
