Single components stereo system for BMW 7 Series E23 745i (1986)

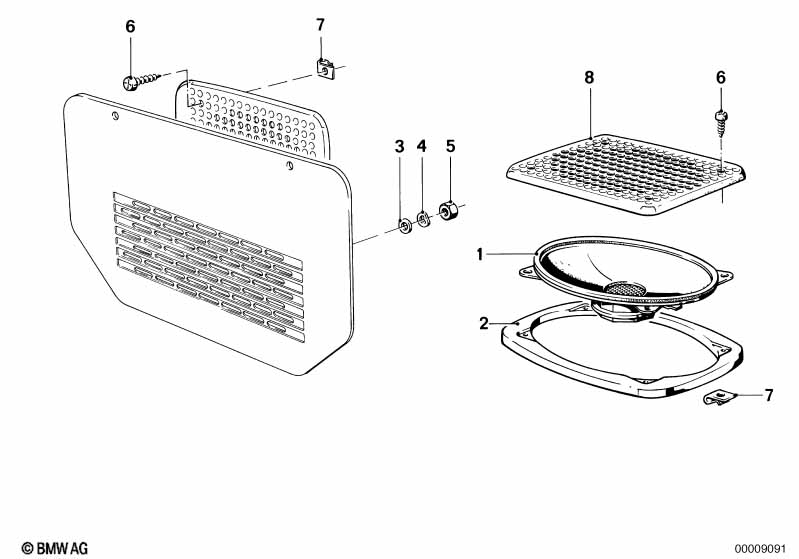

This Single components stereo system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loudspeaker | 4-OHM/8/20W | 4 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 02 | Spacer | LAMA | 2 | 65121377742 | ENDED | Shop at ECS Tuning | ||||
| 02 | Spacer | ANTHRAZIT | 2 | 09/1981 | 65121369884 | $4.63 | ENDED | Shop at ECS Tuning | ||
| 02 | Spacer | PACIFIC | 2 | 09/1981 | 65121369885 | $3.74 | ENDED | Shop at ECS Tuning | ||
| 02 | Spacer | FARNGRUEN | 2 | 09/1981 | 65121369888 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | 9X4,3X0,8-200HV | 8 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 06 | Recessed oval head sheet-metal screw | ST4,2X19 | 8 | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Body nut | ST4,2-3-ZNS3 | 8 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Cover Loudspeaker | ANTHRAZIT | 2 | 65121367715 | $7.96 | Shop at ECS Tuning | ||||
| 08 | Cover Loudspeaker | PACIFIC | 2 | 65121367716 | $7.96 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover Loudspeaker | LAMA | 2 | 65121377741 | $5.62 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover Loudspeaker | PINIENGRUEN | 2 | 09/1981 | 65121370199 | $16.18 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover Loudspeaker | NUTRIA | 2 | 09/1982 | 65121373235 | $5.62 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover Loudspeaker | PERLBEIGE | 2 | 09/1982 | 65121373236 | $28.14 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
