Antenna accessories for BMW 5 Series E12 520 (1976)

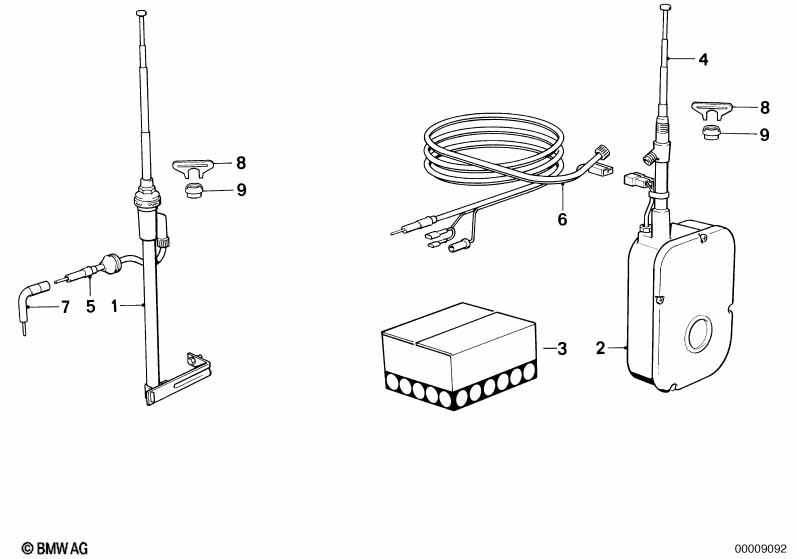

This Antenna accessories technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set disappearing antenna | 1 | 65211371265 | $50.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | Automatic antenna screwed rear | SCHWARZ/CHROM | 1 | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Installing set automatic antenna | 1 | 65221368158 | $53.25 | Shop at ECS Tuning | |||||
| 03 | Installing set automatic antenna | 1 | 65221368158 | $53.25 | Shop at ECS Tuning | |||||
| 04 | Telescope | 1 | 65221369189 | $44.53 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 04 | Telescope | 1 | 65221375569 | $72.64 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Automatic antenna screwed rear | SCHWARZ/CHROM | X | 65221381543 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiring rear | 5400MM | 1 | 65221363589 | $55.76 | ENDED | Shop at ECS Tuning | |||
| 08 | Antenna key | 1 | 65221369478 | $1.04 | ENDED | Shop at ECS Tuning | ||||
| 09 | Nut | CHROM | 1 | 65221369372 | $1.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
