Radio/telephone antenna f official veh. for BMW 5 Series E34 525ix (1995)

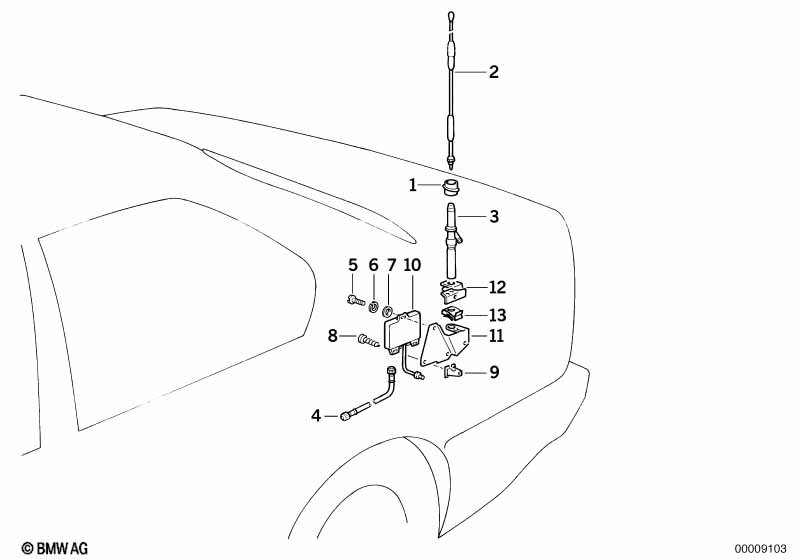

This Radio/telephone antenna f official veh. technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grommet | 1 | 65211384477 | $3.60 | Shop at ECS Tuning | |||||
| 02 | Antenna radiator | 1 | 65211378517 | $74.12 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Antenna base | 2M/4M BAND | 1 | 65211378516 | $68.91 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Antenna cable | 5050MM | 1 | 61128351612 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X10 | 1 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B5 | 1 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 07 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X13-Z1 | 1 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Antenna diplexer | 1 | 65211378518 | ENDED, +core | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 65611384426 | ENDED | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 65218351764 | ENDED | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 65211376009 | $1.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
