Single components CD-10 changer for BMW 8 Series E31 840i (1996)

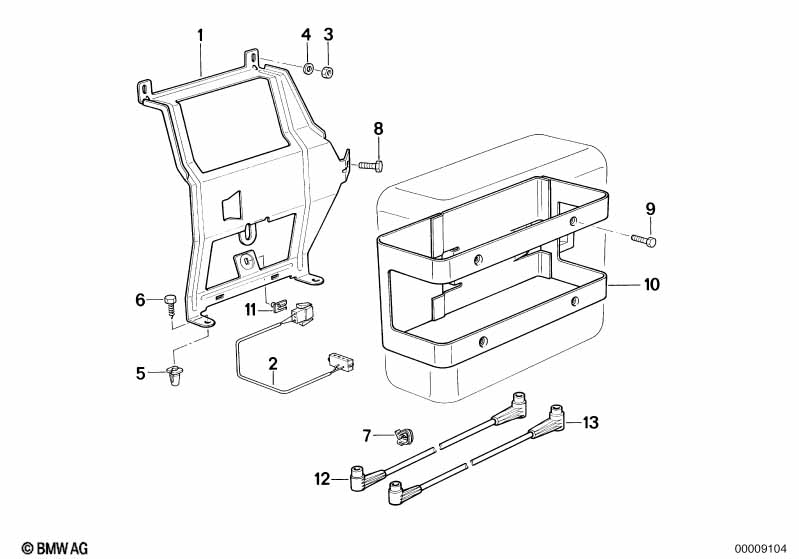

This Single components CD-10 changer technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer | 1 | 65121392898 | $39.91 | ENDED | Shop at ECS Tuning | ||||
| 02 | CD changer adapter cable | 1 | 65128354134 | $18.30 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M6-04-2-ZN | 2 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Hi-lo screw | 4,9X19 | 2 | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Cable holder | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M6X30 | 1 | 07119913101 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M5X10-Z5-1 | 4 | 07119915051 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Bracket CD-changer | 1 | 65121392899 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 12 | Connection cable CD-changer | 2250MM | 1 | 65128354145 | Shop at ECS Tuning | |||||
| 13 | Connection cable CD-changer | 3560MM | 1 | 65128354110 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i Single components CD-10 changer?
- This technical diagram illustrates the Single components CD-10 changer within the Audio, Navigation, Electronic Systems group for the 8 Series E31 840i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Bracket CD-changer (Part #65121392898).
- Which models use the hardware listed in this Single components CD-10 changer?
- The hardware and components featured in the Single components CD-10 changer are specific to the 8 Series E31 840i produced during 1996. These technical specifications ensure that parts like the Bracket CD-changer (65121392898) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components CD-10 changer assembly?
- Each item in the Single components CD-10 changer corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Bracket CD-changer by locating its position on the schematic, which then links to the official BMW part number 65121392898 for the Audio, Navigation, Electronic Systems section.
