Single components CD-10 changer for BMW 5 Series E34 518i (1994)

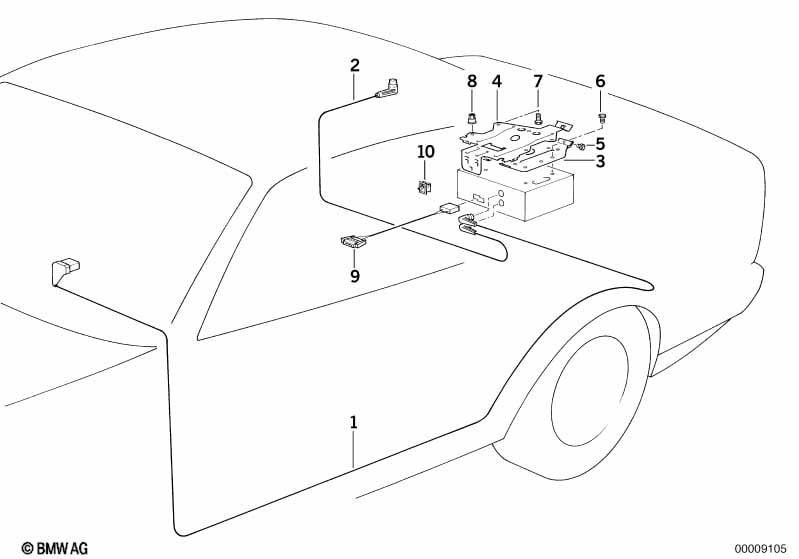

This Single components CD-10 changer technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set | CD-10 WECHSLER | 1 | 65128350010 | $111.04 | Shop at ECS Tuning | ||||
| 02 | Connection cable | CD-10 WECHSLER | 1 | 65128351813 | $165.17 | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 65128351811 | $15.06 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 65128351810 | $18.97 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X12-Z4-2 | 1 | 07119915015 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M5X10-Z5-1 | 4 | 07119915051 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Blind rivet nut, countersunk head | M6 | 3 | 52201975880 | $0.77 | Shop at ECS Tuning | ||||
| 09 | CD changer adapter cable | 1 | 65128354134 | $18.30 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
