Single components hifi system for BMW 5 Series E34 525tds (1996)

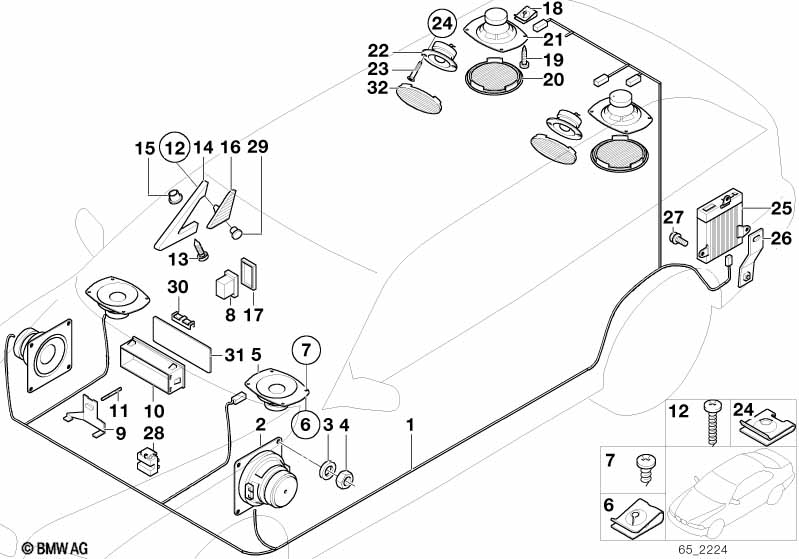

This Single components hifi system technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audio wiring harness HiFi | 1 | 03/1993 | 61108365710 | $291.93 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL |
||||||||||
| 01 | Audio wiring harness HiFi | 1 | 03/1993 | 61108365711 | ENDED | Shop at ECS Tuning | ||||
| 02 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Loudspeaker | HIFI-SYSTEM | 2 | 65138375082 | $57.92 | Shop at ECS Tuning | ||||
| 06 | C-clip nut | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,2X13 | 4 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Fader control with cylindrical connector | HIFI/SOUND SYST | 1 | 65121379325 | $44.65 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 65111384209 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 09 | Holder | 1 | 65111384109 | ENDED | Shop at ECS Tuning | |||||
| 10 | Frame | 1 | 65121388703 | $12.98 | ENDED | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister head self-tapping screw | ST3,9X13 | 2 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| 14 | Covering left | SCHWARZ | 1 | 65131384805 | $14.34 | ENDED | Shop at ECS Tuning | |||
| 14 | Covering right | SCHWARZ | 1 | 65131384806 | $14.34 | Shop at ECS Tuning | ||||
| 15 | Loudspeaker mounting clip | HIFI SYSTEM | 2 | 51321379809 | $0.79 | Shop at ECS Tuning | ||||
| 16 | Loudspeaker left Loudspeaker left | SCHWARZ | 1 | 03/1993 | 65138360239 | $65.47 | Shop at ECS Tuning | |||
| 16 | Loudspeaker right Loudspeaker right | SCHWARZ | 1 | 03/1993 | 65138360240 | $65.47 | ENDED | Shop at ECS Tuning | ||
| 18 | Body nut | M6 | 8 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Fillister head self-tapping screw | ST3,9X9,5-F | 8 | 07119907910 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Cover Loudspeaker | SCHWARZ | 2 | 51442253012 | $17.40 | Shop at ECS Tuning | ||||
| 20 | Cover Loudspeaker | SILBERGRAU | 2 | 51448120955 | $22.16 | ENDED | Shop at ECS Tuning | |||
| 20 | Cover Loudspeaker | PERGAMENT | 2 | 51448120956 | $22.16 | ENDED | Shop at ECS Tuning | |||
| 21 | Loudspeaker | 4OHM 20/40 WATT | 2 | 65138370936 | $71.45 | Shop at ECS Tuning | ||||
| 22 | Loudspeaker | HIFI SYSTEM | 2 | 03/1993 | 65138375085 | $57.92 | Shop at ECS Tuning | |||
| 23 | Sheet metal screw | 3,5X9,5 | 4 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 24 | Body nut | ST3.5-2 | 4 | 07129925714 | $0.20 | Shop at ECS Tuning | ||||
| 25 | Anti-interfer.(telephone) hifi amplifier | 1 | 03/1993 | 65128361782 | $447.48 | ENDED | Shop at ECS Tuning | |||
| 26 | Holder Hifi system amplifier | 1 | 65128355886 | $5.20 | ENDED | Shop at ECS Tuning | ||||
| 27 | Hex bolt with washer | M6X10-Z1 | 4 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 28 | Radiocontact | 1 | 65758366215 | $36.48 | Shop at ECS Tuning | |||||
| 29 | Covering cap | SCHWARZ | 2 | 65131389609 | $0.52 | Shop at ECS Tuning | ||||
| 30 | Clamp | BECKER | 2 | 65121385469 | $0.22 | Shop at ECS Tuning | ||||
| 31 | Frame | BECKER | 1 | 65121389614 | $2.47 | Shop at ECS Tuning | ||||
| 32 | Cover Loudspeaker | SILBERGRAU | 2 | 51448120953 | $14.13 | ENDED | Shop at ECS Tuning | |||
| 32 | Cover Loudspeaker | PERGAMENT | 2 | 51448120954 | $14.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 32 | Cover loudspeaker left | SILBERGRAU | 1 | 51448149137 | $14.13 | ENDED | Shop at ECS Tuning | |||
| 32 | Cover loudspeaker right | SILBERGRAU | 1 | 51448149138 | $14.13 | ENDED | Shop at ECS Tuning | |||
| 32 | Cover loudspeaker left | PERGAMENT | 1 | 51448149139 | $14.13 | Shop at ECS Tuning | ||||
| 32 | Cover loudspeaker right | PERGAMENT | 1 | 51448149140 | $14.13 | ENDED | Shop at ECS Tuning | |||
