Single components CD-6 changer for BMW 7 Series E32 730i (1994)

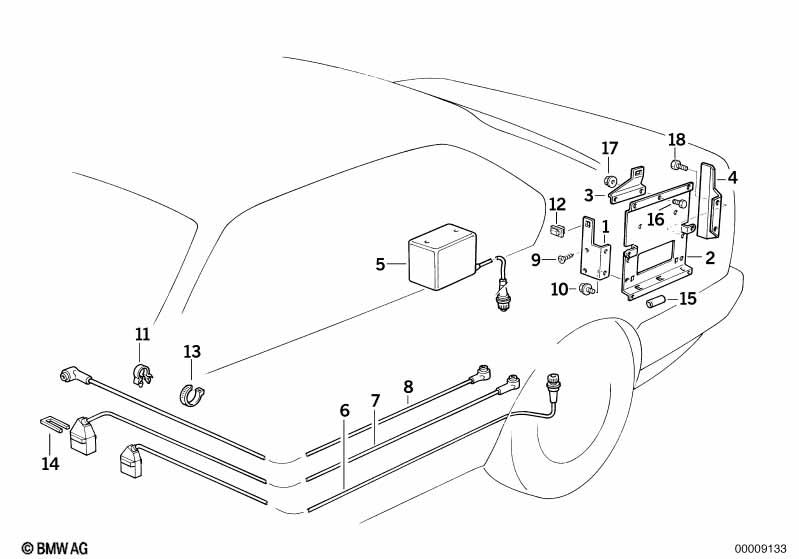

This Single components CD-6 changer technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket CD-changer | 2 | 65128356084 | $8.02 | Shop at ECS Tuning | |||||
| For vehicles with Car telephone motorola C |
=Yes |
|||||||||
| 01 | Bracket CD-changer | 1 | 65128356088 | $20.65 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting plate | 1 | 65611969671 | $19.11 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 65618111589 | $3.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 65618111581 | $32.89 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 05 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128355803 | $505.55 | ENDED | Shop at ECS Tuning | |||
| 05 | Interface CD-changer | CD-6 SELEKTION | 1 | 65128359507 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA C BUSINESS RDS |
||||||||||
| 06 | Connection cable CD-changer | 5620MM | 1 | 65128356138 | $118.43 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO RADIO BAVARIA C PROFESSIONAL RDS |
||||||||||
| 07 | Connection cable CD-changer | 5210MM | 1 | 65128356258 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection cable CD-changer | 670MM | 1 | 65128355809 | $65.29 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head screw | M4X8 | 6 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Tubing support | D=18,4 | 1 | 61131368928 | $0.35 | Shop at ECS Tuning | ||||
| 12 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 13 | Cable tie | 1 | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 14 | Clip f plug terminal | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
| 15 | Protective hose | 1 | 65128357378 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M5X15 | X | 07119913235 | $3.51 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex nut | M5-8-ZNNIV SI | X | 07119905729 | Shop at ECS Tuning | |||||
| 18 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
